Product Details:
Payment & Shipping Terms:
|
| Lubrication: | Optional | Galvanization: | Hot Dipped Galvanization |
|---|---|---|---|
| ANTI TWIST WIRE ROPE: | 22 MM ANTI TWISTING PILOT STEEL WIRE ROPE | Model: | ATW22 X 800M |
| Breaking Load: | 320KN | Standard Length: | 800 Meters Optional |
| Strands: | 12 Or 18 | Packing: | Steel Drum |
| High Light: | 22mm anti twisting steel wire rope,hdg anti twisting steel wire rope,22mm anti twist wire rope |
||
22MM Anti Twist Steel Wire Rope is used for four bundled conductors stringing on overhead power lines. It is braided from 4.8mm galvanized strands.
22MM ANTI TWISTING BRAIDED STEEL WIRE ROPE
| Item No. | Nominal diameter | Min. Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Lubricated Weight (kg/1000m) | |
| 18212A | 22 | 320.00 | Φ4.8 | 1960 | 1520 | |

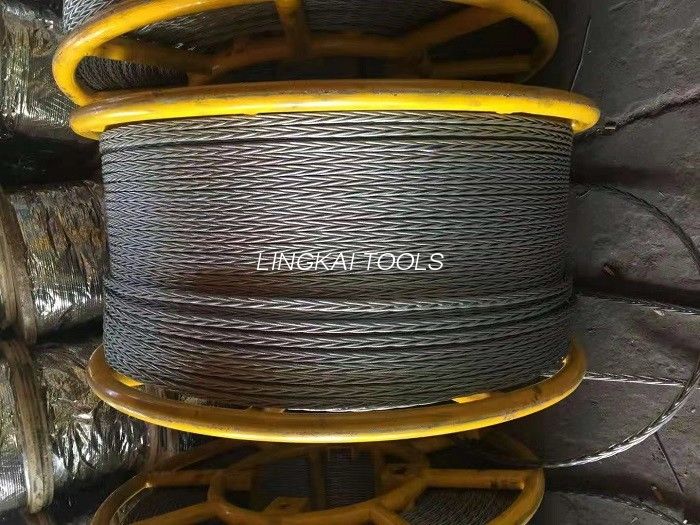

22mm rope is braided from 12 strands of 1X29Fi wire, 800 meter/drum
Packed in 1400mm diameter steel drum.
Anti twisting steel rope is specially braided from 12 strands of high strength, high flexible galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force.
It can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work. The rope is packed in steel drum which can be installed directly on the reel winder of puller
24MM Anti twisting braided steel wire rope
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Net Weight (kg/1000m) | |
| 18213A | 24 | 360 | Φ5.2 | 1960 | 1760 | |
24mm rope is braided from 12 strands of 1X29Fi wire, 700-800 meter/drum
Packed in 1400mm-1500mm diameter steel drum.
Anti twisting steel rope is specially braided from 12 strands of high strength, high flexible galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force.
It can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work. The rope is packed in steel drum which can be installed directly on the reel winder of puller.
26MM Anti twisting braided steel wire rope
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Net Weight (kg/1000m) | |
| 18214A | 26 | 400 | Φ5.4 | 1960 | 1950 | |
26mm rope is braided from 12 strands of 1X29Fi wire, 700-800 meter/drum
Packed in 1500mm-1600mm diameter steel drum.
Anti twisting steel rope is specially braided from 12 strands of high strength, high flexible galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force.
It can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work. The rope is packed in steel drum which can be installed directly on the reel winder of puller.
