Product Details:
Payment & Shipping Terms:
|
| Lubrication: | Optional | Galvanization: | Hot Dipped Galvanization |
|---|---|---|---|
| Standard Length: | 1000 Meters Optional | Model: | ATW16 MMX 1000M |
| Packing: | Steel Drum | Strands: | 12 |
| High Light: | galvanized anti twisting steel wire rope,braided anti twisting steel wire rope,conductor stringing anti twist wire rope |
||
Anti twisting steel rope is specially braided from 12 strands of high strength, high flexible galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force.

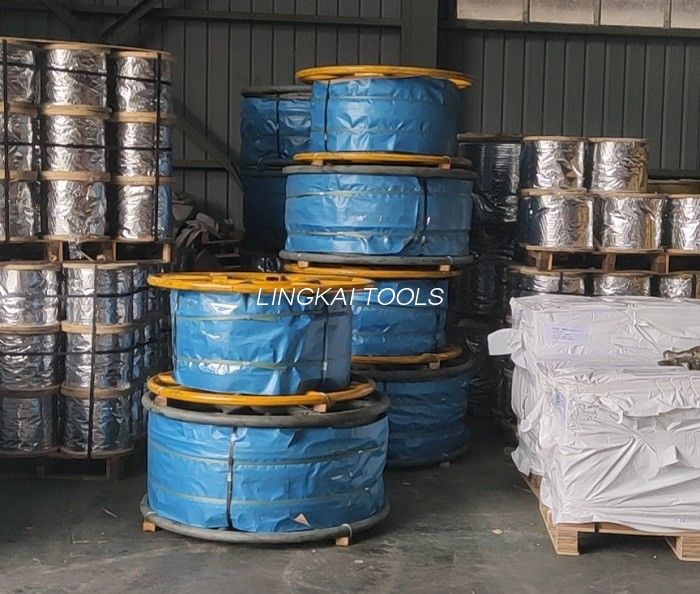

It can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work. The rope is packed in steel drum which can be installed directly on the reel winder of puller.
8 Strands Anti twisting braided steel wire rope
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Net Weight (kg/1000m) | |
| 18101 | 7 | 35 | Φ2.0 | 1960 | 166 | |
| 18102 | 9 | 54 | Φ2.5 | 1960 | 270 | |
| 18103 | 11 | 78 | Φ3.0 | 1960 | 412 | |
| 18104 | 13 | 105 | Φ3.5 | 1960 | 530 | |
| 18105 | 15 | 117 | Φ4.0 | 1960 | 706 | |
9mm rope is braided from 8 strands of 1X19W galvanized wire, 1000 meter/drum
Packed in 950mm diameter steel drum.
8 strands of anti twisting steel wire rope is normally used on braiding small diameter rope, for pulling OPGW or single conductors.
12 Strands Anti twisting braided steel wire rope
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Net Weight (kg/1000m) | |
| 18201A | 9mm | 50 kN | 2.0mm | 1960 | 250 | |
| 18202A | 10mm | 70 kN | 2.3mm | 1960 | 356 | |
| 18203A | 11 mm | 85 kN | 2.5mm | 1960 | 410 | |
| 18204A | 12 mm | 100 kN | 2.7mm | 1960 | 510 | |
| 18205A | 13 mm | 115 kN | 3.0mm | 1960 | 620 | |
| 18206A | 14 mm | 130 kN | 3.2mm | 1960 | 710 | |
| 18207A | 15mm | 143 kN | 3.3mm | 1960 | 770 | |
| 18208A | 16mm | 160 kN | 3.5mm | 1960 | 800 | |
| 18209A | 18mm | 206 kN | 4.0mm | 1960 | 1060 | |
| 18210A | 19mm | 236 kN | 4.3mm | 1960 | 1210 | |
| 18211A | 20mm | 266 kN | 4.5mm | 1960 | 1310 | |
| 18212A | 22 mm | 313 KN | 4.8 mm | 1960 | 1500 | |
| 18213A | 24 mm | 342 KN | 5.0 mm | 1960 | 1650 | |
| 18214A | 26 mm | 400 KN | 5.4 mm | 1960 | 1950 | |
| 18215A | 28 mm | 462 KN | 6.0 mm | 1960 | 2020 | |
Most of our anti twisting steel wire rope are braided in 12 strands, with high flexibility and strength.
18 Strands Anti twisting braided steel wire rope
|
Item No. |
Nominal diameter |
Breaking Load (KN) |
Single strand diameter (mm) |
Normal T/S (N/mm²) |
Net Weight (kg/1000m) |
|
|
18214B |
26 |
405 |
Φ4.5 |
1960 |
2020 |
|
|
18215B |
28 |
540 |
Φ5.2 |
1960 |
2630 |
|
|
18216 |
30 |
582 |
Φ5.4 |
1960 |
2930 |
|
|
18217 |
31 |
680 |
Φ5.8 |
1960 |
3360 |
|
|
18218 |
32 |
727 |
Φ6.0 |
1960 |
3600 |
|
26mm rope is braided from 18 strands of 1X29T galvanized wire, 600 meter/drum
Packed in 1500mm diameter steel drum.
18 strands of ant-twisting rope are used in big diameter rope braiding machines, they are used for pulling high strength conductores on super-high voltage transmission lines.
