| Model: | ATW9mm, 11mm, 16mm, 18mm,22mm | Description: | Anti Twisting Braided Steel Wire Rope |
|---|---|---|---|
| Construction Of Strands: | 1 X 19W Or 1X25T, 1X29T | Usage: | Single Conductor Or OPGW |
| Breaking Load: | 462kn | Grade Of Steel Wire: | 1960, 2060 N/MM2 |
| Lubrication: | Optional | Number Of Strands: | 12 |
| High Light: | traction anti twisting steel wire rope,anti twisting steel wire rope galvanized,pilot anti twist wire rope |
||
12 Strands Anti Twisting Braided Steel Wire Rope is normally used for stringing overhead conductor or optic fiber cable on electric power lines.
Anti Twisting Braided Steel Wire Rope is specially braided from galvanized steel wire strands, and usually used for overhead power line stringing and pulling operation. The high strength rope has lot of advantages: high flexibility, complete stability to rotation, homogeneous distribution of pressure between the elementary wires. Increased efficiency during stringing operations. So the rope is always used as pilot wire rope or pulling rope for power line construction

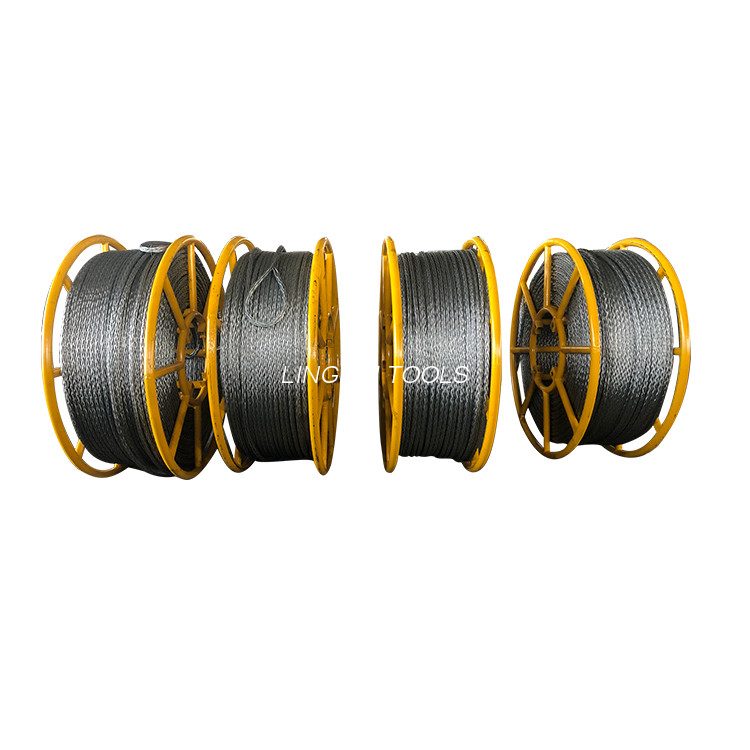

12 Strands Anti twisting braided steel wire rope
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Net Weight (kg/1000m) | |
| 18201A | 9mm | 50 kN | 2.0mm | 1960 | 250 | |
| 18202A | 10mm | 70 kN | 2.3mm | 1960 | 356 | |
| 18203A | 11 mm | 85 kN | 2.5mm | 1960 | 410 | |
| 18204A | 12 mm | 100 kN | 2.7mm | 1960 | 510 | |
| 18205A | 13 mm | 115 kN | 3.0mm | 1960 | 620 | |
| 18206A | 14 mm | 130 kN | 3.2mm | 1960 | 710 | |
| 18207A | 15mm | 143 kN | 3.3mm | 1960 | 770 | |
| 18208A | 16mm | 160 kN | 3.5mm | 1960 | 800 | |
| 18209A | 18mm | 206 kN | 4.0mm | 1960 | 1060 | |
| 18210A | 19mm | 236 kN | 4.3mm | 1960 | 1210 | |
| 18211A | 20mm | 266 kN | 4.5mm | 1960 | 1310 | |
| 18212A | 22 mm | 313 KN | 4.8 mm | 1960 | 1500 | |
| 18213A | 24 mm | 342 KN | 5.0 mm | 1960 | 1650 | |
| 18214A | 26 mm | 400 KN | 5.4 mm | 1960 | 1950 | |
| 18215A | 28 mm | 462 KN | 6.0 mm | 1960 | 2020 | |
| Cat.Number | Rope Dia. | Breaking Load | Strand Dia. | Structure | Unit Weight | Remark |
| 18101 | 7mm | 35 kN | 2.0mm | 8x19W | 0.160 kg/m | 8 strands |
| 18102 | 9mm | 54 kN | 2.5mm | 8x19W | 0.26 kg/m | 8 strands |
| 18103 | 11mm | 77 kN | 3.0mm | 8x19W | 0.373 kg/m | 8 strands |
| 18104 | 13mm | 105 kN | 3.5mm | 8x19W | 0.510 kg/m | 8 strands |
| 18105 | 15mm | 137 kN | 4.0mm | 8x19W | 0.667 kg/m | 8 strands |
| 18201A | 9mm | 50 kN | 2.0mm | 12x19W | 0.250 kg/m | 12 strands |
| 18202A | 10mm | 70 kN | 2.3mm | 12x19W | 0.356 kg/m | 12 strands |
| 18203A | 11 mm | 85 kN | 2.5mm | 12x19W | 0.405 kg/m | 12 strands |
| 18204A | 12 mm | 100 kN | 2.7mm | 12x19W | 0.510 kg/m | 12 strands |
| 18205A | 13 mm | 115 kN | 3.0mm | 12x19W | 0.620 kg/m | 12 strands |
| 18206A | 14 mm | 130 kN | 3.2mm | 12x19W | 0.710 kg/m | 12 strands |
| 18207A | 15mm | 143 kN | 3.3mm | 12x19W | 0.770 kg/m | 12 strands |
| 18208A | 16mm | 160 kN | 3.5mm | 12x19W | 0.800 kg/m | 12 strands |
| 18209A | 18mm | 206 kN | 4.0mm | 12x19W | 1.06 kg/m | 12 strands |
| 18210A | 19mm | 236 kN | 4.3mm | 12x19W | 1.21 kg/m | 12 strands |
| 18211A | 20mm | 266 kN | 4.5mm | 12x1T25 | 1.31 kg/m | 12 strands |
| 18211B | 20mm | 275 kN | 4.5mm | 12x1T29 | 1.35 kg/m | 12 strands |
| 18212A | 22mm | 313 kN | 4.8mm | 12x1T25 | 1.49 kg/m | 12 strands |
| 18212B | 22mm | 325 kN | 4.8mm | 12x1T29 | 1.54 kg/m | 12 strands |
| 18213A | 24mm | 342 kN | 5.0mm | 12x1T29 | 1.65 kg/m | 12 strands |
| 18213B | 24mm | 375 kN | 5.2mm | 12x1T29 | 1.80 kg/m | 12 strands |
| 18214A | 26mm | 400 kN | 5.4mm | 12x1T29 | 1.95 kg/m | 12 strands |
| 18214B | 26mm | 405 kN | 4.5mm | 18x1T29 | 2.02 kg/m | 18 strands |
| 18215A | 28mm | 462 kN | 6.0mm | 12x1T25 | 2.24 kg/m | 12 strands |
| 18215B | 28mm | 540 kN | 5.2mm | 18x1T25 | 2.63 kg/m | 18 strands |
| 18216 | 30mm | 582 kN | 5.4mm | 18x1T29 | 2.93 kg/m | 18 strands |
| 18217 | 31mm | 680 kN | 5.8mm | 18x1T29 | 3.36 kg/m | 18 strands |
| 18218 | 32mm | 727 kN | 6.0mm | 18x1T29 | 3.60 kg/m | 18 strands |
| SUGGESTED WORKING LOAD: 1/3 OF BREAKING LOAD | ||||||
