ACSR Conductor Cutter Steel Wire Cable Cutters Overhead Transmission Tools

ACSR Conductor Cutter Steel Wire Cable Cutters Overhead Transmission Tools
ACSR Conductor Cutter Steel Wire Cable Cutters Overhead Transmission Tools ACSR Conductor Cutter Steel Wire Cable Cutters Overhead Transmission Tools ACSR Conductor Cutter Steel Wire Cable Cutters Overhead Transmission Tools

Large Image :  ACSR Conductor Cutter Steel Wire Cable Cutters Overhead Transmission Tools

Product Details:
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO
Model Number: J30, J13, J25,J50,J14....
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: get the latest
Packaging Details: ploy wooden case
Delivery Time: 3-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100000 PCS/month
Detailed Product Description
Description: Cable Cutters Type Of Cutter: Ratchet Or Hydraulic
Application: Underground Cable Installation Diameter Of Cable: Up To 185 Mm
High Light:

Cable Cutters Stringing Tools

,

Ratchet Cable Cutters

,

Steel Wire Cutter Transmission Tools

J Series ACSR Conductor Cutter Steel Wire Cutter Overhead Transmission Tools

Cable cutters are used for underground cable installation and pulling operation. The cutters are mechanical ratchet type or hydraulic type.

TECHNICAL DATA

Item number Model Cutting Range
21442B CC325 Cutting Off Copper Or Aluminum Cable below240 mm2
21442A J40B Cutting Off Copper Or Aluminum Cable below240 mm2
21442C J40A Cutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm.
21442D J40C Cutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm.
21445C J40D Cutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm.
21445 J40 Cutting Copper Or Aluminum armored cable below300 mm2. Maximum opening is 40 mm.
21445A J52 Cutting Copper Or Aluminum armored cable below 500mm2. Maximum opening is 52 mm.
21445B J75

Cutting Copper and Aluminum armored

cables diameter below Φ 75mm

21441 J95

Cutting Copper and Aluminum armored

cables diameter below Φ 95m

21441A J100

Cutting Copper and Aluminum armored

cables diameter below Φ 100m

21440 J130

Cutting Copper and Aluminum armored

cables diameter below Φ 130mm

21440A J160

Cutting Copper and Aluminum armored

cables diameter below Φ 160mm



PRODUCT DESCRIPTION

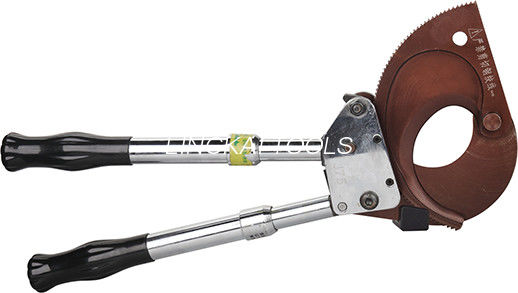

Hand Easy Operation Armoured Ratchet Cutting Tools Manual Wire Cutter Electric Cable Cutter

1. Cutting the copper aluminum armoured cable

2.  It could be operated by one hand only due to light weight;

3. The cable cutter has convenient operation, is labor saving and safe and can not damage cable wires and human bodies.



Feature

1. Cutting the steel wire rope;

2. It could be operated by one hand only due to light weight;

3. The utility model has convenient operation, is labor saving and safe and can not damage cable wires and human bodies.

SPECIFICATION

Item number Model Cutting Range
16247 J30

Cutting ACSR with section below 630mm .

Cutting steel strand with section below 100 mm.

16246 J13

Cutting ACSR with section below 720mm .

Cutting steel strand with section below 150 mm.

16245 J25

Cutting ACSR with section below 800mm .

Cutting steel strand with section below 150 mm.

16248 J50

Cutting ACSR with section below 1440mm .

Cutting steel strand with section below 180 mm.

16237 J14 Cutting steel rope section diameter below Φ20 mm
16238 J25A

Cutting steel rope section diameter below Φ30 mm



16239 J33 Cutting steel rope section diameter below Φ33 mm



ACSR Conductor Cutter Steel Wire Cable Cutters Overhead Transmission Tools 0

ACSR Conductor Cutter Steel Wire Cable Cutters Overhead Transmission Tools 1
