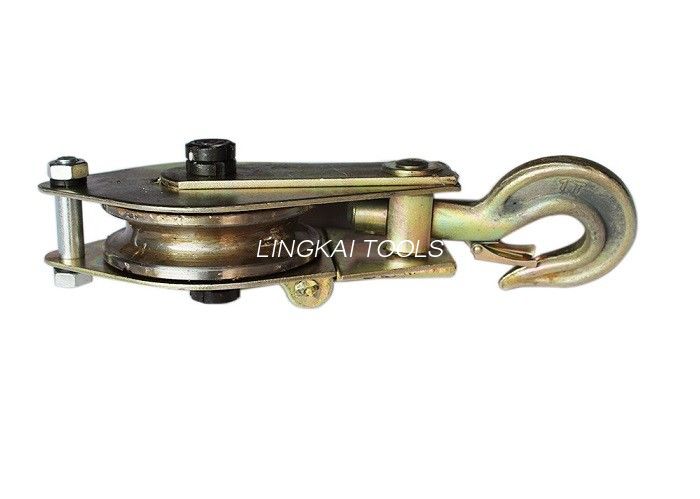

Snatch Blocks And Wire Rope Pulley Of Power Line Construction Equipment

Snatch Blocks And Wire Rope Pulley Of Power Line Construction Equipment
Snatch Blocks And Wire Rope Pulley Of Power Line Construction Equipment

Large Image :  Snatch Blocks And Wire Rope Pulley Of Power Line Construction Equipment

Product Details:
Place of Origin: Ningbo
Brand Name: Lingkai
Certification: ISO
Model Number: QH2-1K QH3-1K QH3-2 QH5-1K...
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: get the latest price
Packaging Details: wooden case packing
Delivery Time: 3-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 200000 sets/month
Detailed Product Description
Model: QH2-1K QH3-1K QH3-2 QH5-1K Diameter Of Steel Wire Rope: Max. 22mm
Sheave Size: Max. 280 Mm Max. Working Load: 200KN
Material Of Sheave: Steel, ALuminum Alloy, Nylon Head Type: 3 Types Can Be Selected
High Light:

Snatch Blocks Conductor Stringing Tools

,

Power Line Construction Equipment Snatch Blocks

Snatch Blocks And Wire Rope Pulley Of Power Line Construction Equipment
Snatch Blocks and Wire Rope Pulleys are used for lifting goods or pulling operation in power line construction. All sheaves are mounted on bearings.



According to the difference of lifting rope, the snatch blocks could have different material: steel or aluminum

Steel Tackle Blocks

Item No. Model Description Rated Load (KN) Rope Dia. (mm) Weight (kg) Fitting Style
11181 QH1-1 Single sheave, open 10 Φ7.7 2.8 Hook, eye
11182 QH2-1 Double sheaves 10 Φ5.7 2.8 Hook, eye
11183 QH3-1 Three sheaves 10 Φ5.7 4.1 Hook, eye
11191 QH1-2 Single sheave, open 20 Φ11 4.2 Hook, eye
11192 QH2-2 Double sheaves 20 Φ7.7 4.2 Hook, eye
11193 QH3-2 Three sheaves 20 Φ7.7 6 Hook, eye
11201 QH1-3 Single sheave, open 30 Φ12.5 7 Hook, eye, clevis
11202 QH2-3 Double sheaves 30 Φ11 5.3 Hook, eye
11203 QH3-3 Three sheaves 30 Φ7.7 6.5 Hook, eye
11211 QH1-5 Single sheave, open 50 Φ15.5 9.6 Hook, eye
11212 QH2-5 Double sheaves 50 Φ12.5 10.8 Hook, eye
11213 QH3-5 Three sheaves 50 Φ11 7.7 Hook, eye
11221 QH1-8 Single sheave, open 80 Φ18.5 12.5 Hook, eye, clevis
11222 QH2-8 Double sheaves 80 Φ15.5 17 Eye
11223 QH3-8 Three sheaves 80 Φ12.5 17.5 Eye
11231 QH1-10 Single sheave, open 100 Φ20 15 Hook, eye, clevis
11232 QH2-10 Double sheaves 100 Φ18.5 20 Eye
11233 QH3-10 Three sheaves 100 Φ12.5 20 Eye
11241 QH1-15 Single sheave, open 150 Φ26 38 Hook, eye, clevis
11242 QH2-15 Double sheaves 150 Φ20 41 Eye
11243 QH3-15 Three sheaves 150 Φ15.5 44 Eye
11244 QH4-15 Four sheaves 150 Φ15.5 46 Eye

Application: Used for pole and tower erection, line construction, equipment hoisting and other lifting applications.

Note: Please specify the fitting styles (hook, eye, clevis) when ordering

Coir Rope Tackle Blocks

Item No. Model No. of sheaves Fitting type Rated Load (KN) Outer Diameter x Width (mm) Weight (kg)
11251 QH1GL-1 1 Hook, open 10 Φ100 x 31 2.2
11252 QH2GL-1 2 Hook 10 Φ80 x 27 2.3
11253 QH2HL-1 2 Hook 10 Φ80 x 27 1.9
11261 QH3GL-1.5 3 Hook 15 Φ100 x 31 3
11262 QH3HL-1/5 3 Eye 15 Φ80 x 27 2.6
11271 QH3GL-2 3 Hook 20 Φ100 x 31 4.5
11272 QH3HL-2 3 Eye 20 Φ100 x 31 3.5
11273 QH2GL-2 1 Hook 20 Φ100 x 31 3.6
11274 QH2HL-2 1 Eye 20 Φ100 x 31 3
11275 QH1HL-2 1 Eye, open 20 Φ120 x 35 3.4



Double Way Double Sheave Snatch Block

Item No. Model Rated Load (KN) Rope Diameter (mm) Weight (kg) Fitting Style
11281 QHS2-3 30 ≤Φ11 2.8 Hook, eye
11282 QHS2-5 50 ≤Φ12.5 2.8 Hook, eye
11283 QHS2-8 80 ≤Φ15.5 4.1 Hook, eye
11284 QHS2-10 100 ≤Φ15.5 4.2 Hook, eye

Features: The snatch block could be opened on both sides, for loading steel ropes.

Note: Please specify the fitting styles (hook, eye,) when ordering.

Package

1. The equipment and tools will be loaded in plywood case.

2. It also can be packed in steel frame case or wooden case



Snatch Blocks And Wire Rope Pulley Of Power Line Construction Equipment 0

Snatch Blocks And Wire Rope Pulley Of Power Line Construction Equipment 1
