Product Details:
Payment & Shipping Terms:
|
| Max. Pulling Speed: | 35.6 Meter / Minute | Description: | Engine Powered Winches |
|---|---|---|---|
| Capstan: | Double | Max. Pulling Force: | 50 KN |
| Engine: | Diesel Or Honda Petrol Engine | Shifts: | 3 Forward 1 Backward |
| High Light: | Motorised Winches Overhead Line Stringing Tools,50KN Trailer Overhead Line Stringing Tools |
||

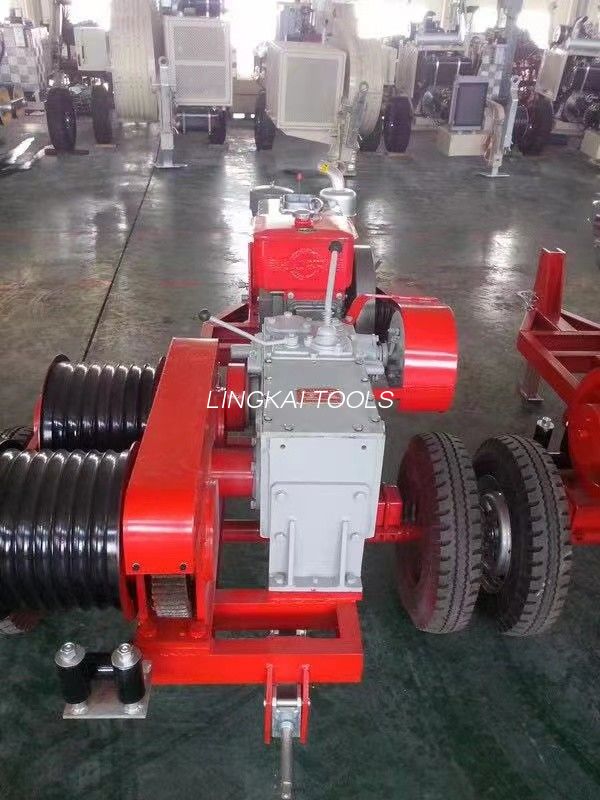

Double Drum 50 KN Trailer For Overhead Line Stringing Conductor Equipment
Motorised Winches are used for tower erection,material lifting and cable sagging or pulling operation in overhead power line construction project.
Dull-bull Wheel Winches (5T)
| Item No. | 09162 | |
| Model | JJCS-50T | |
| Diesel Engine Power (KW) | 9 | |
| Diesel Engine Model | S195G | |
| Diesel Engine Speed (rpm) | 2000 | |
| Pull force (KN) / Pull speed (m/min) | I, III shift | 50/3.1, 40/9.6 |
| II, V shift | 45/7.1, 17/22.3 | |
| IV, VI shift | 33/11.3, 10/35.6 | |
| Reverse shift | -/7.35 | |
| Diameter of Capstan (mm) | Φ300 | |
| Dimension (mm) | 2230 x 1210 x 1135 | |
| Weight (kg) | 700 | |
Application: Used for tower erection, hoisting goods, conductor and earth wire (OPGW)
stringing operation in power & telecom line construction.
Features: The winches are mounted on the trailer, could be dragged in short distance. There is mechanical brake system composed in the Gear Box. The brake can hold the steel wire rope when there is emergency.
Dull-bull Wheel Winches (3T)
Application: Used for tower erection, hoisting goods, conductor or earth wire stringing operation in line construction.
Features: Dual-bull wheel structure could minimize the damage to steel ropes.
| Item No. | 09151 | 09152 | |
| Model | JJCS-30 | JJQS-30 | |
| Engine Model | Diesel engine R175 | Honda GX270 | |
| Engine Power(hp) | 6 | 9 | |
| Engine Speed (rpm) | 2600 | 3000 | |
| Pull force (KN) / Pull speed (m/min) | I shift | 30/5.7 | 30/7.43 |
| II shift | 18.9/9.1 | 19.2/11.8 | |
| III shift | 7.6/22.7 | 7.2/31.4 | |
| Reverse shift | -/6.5 | -/8.4 | |
| Diameter of Capstan (mm) | Φ240 | Φ240 | |
| Dimension (mm) | 1000 x 670 x 600 | 1000 x 670 x 600 | |
| Weight (kg) | 260 | 242 | |
There is mechanical brake system composed in the Gear Box. The brake can hold the steel wire rope when there is emergency.
