660 Mm Large Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block

660 Mm Large Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block
660 Mm Large Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block

Large Image :  660 Mm Large Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Lingkai
Certification: ISO CE
Model Number: 660mm pulley
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: get the latest price
Packaging Details: Container, wooden case
Delivery Time: 3-10 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sets/month
Contact Now
Detailed Product Description
Sheave Dimension: Φ660×Φ560×110 .Maximum Suitable Conductor: ACSR500
Material: MC NYLON Rated Load: Max 75 KN
Broken Load: Max 75x3 KN Name: Pulleys
High Light:

Wheels Stringing Pulley 660 Mm

,

Bundled Wire Stringing Pulley

,

Conductor Pulley String Block

660 Mm Large Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block

PRODUCT DESCRIPTION

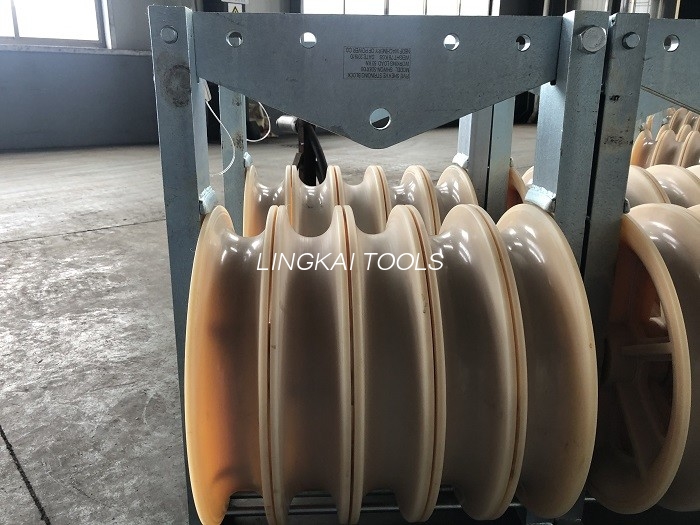

660mm Large Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block
Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort. 1.Maximum suitable conductor ACSR500 2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm) 3.Sheave dimension Φ660×Φ560×110(mm) can be customized


TECHNICAL DATA

Item number Model Number of sheaves Rated load (kN) Weight (kg) Features
10121 SHD660 1 20 30 Rubber lined aluminium sheave
10122 SHS660 3 40 100

Middle : Cast steel sheave

Conductor : Rubber lined aluminium sheave
10123 SHW660 5 60 150
10124/10124A SHDN660 1 20 26 MC nylon sheave
10125 SHSLN660 3 40 86

Middle : MC nylon sheave

Conductor : Rubber lined aluminium sheave
10126 SHWLN660 5 60 120
10127/10127A SHSQN660 3 40 70 MC nylon sheave
10128/10128A SHWQN660 5 60 110
10130 SHQ660A 7 75 190

Middle :cast steel sheave

Conductor : MC nylon sheave



660 Mm Large Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block 0
