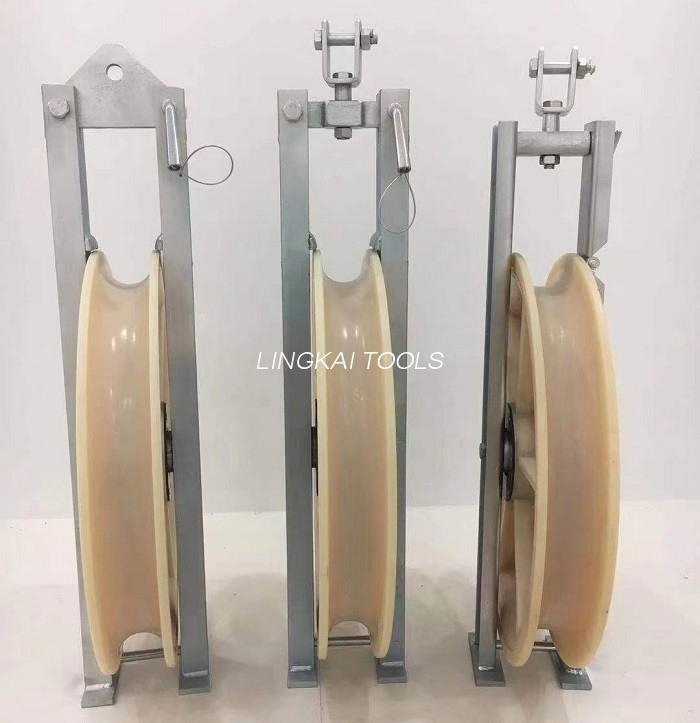

822 Mm Large Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block

Product Details

Place of Origin: Ningbo China

Brand Name: Lingkai

Certification: ISO CE

Model Number: 822 mm pulleys

Payment & Shipping Terms

Minimum Order Quantity: 10 sets

Price: get the latest

Packaging Details: wooden case/ container

Delivery Time: 3-10 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 5000 sets/month

Get Best Price
Product Details
High Light:

Bundled Wire Conductor Pulley

,

Pulley Stringing Block Sheaves Bundled

,

Wheels Cable Pulling Sheaves 822mm

Sheave Dimension:
Φ822×Φ710×110
Pulley:
MC/cast Steel/aluminum
Max Rated:
150 Kn
Max ACSR:
ACSR 630
Sheave Dimension:
Φ822×Φ710×110
Pulley:
MC/cast Steel/aluminum
Max Rated:
150 Kn
Max ACSR:
ACSR 630
Product Description

822MM LARGE DIAMETER WHEELS SHEAVES BUNDLED WIRE CONDUCTOR PULLEY STRINGING BLOCK

This 822mm Large Diameter Stringing Block possesses the dimension (outside diameter*root diameter*sheave width) of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is ACSR630, which means that the aluminum of our conducting wire has the maximum cross section of 630 square millimeters.

The 10148 type product is designed with the assembled structure. It is really convenient to separate the conductor from middle sheave, thus helping reduce the weight during transportation. Dimension of the middle steel sheave is φ520×φ400×120 mm. Furthermore, we can also provide the rubber coated aluminum sheave, the rubber coated MC nylon sheave, as well as the reinforced nylon sheave coated by polyurethane.



1.Maximum suitable conductor ACSR630.

2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ822×Φ710×110

3.Rubber lined MC nylon sheave for conductor can be customized.



822MMTECHNICAL PARAMETERS

Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Sheave Features
10141 SHDN822 1 30 40 MC nylon sheave
10142 SHSQN822 3 60 118
10143 SHWQN822 5 120 180
10146A SHQQN822 7 120 250
10146 SHQ822 7 120 285 Middle: cast steel sheave Conductor: MC nylon sheave
10148 SHJ822 9 150 445
10141A SHDL822 1 30 45 Aluminum sheave
10141B SHDLJ822 1 30 48 Rubber lined aluminium sheave
