Product Details:
Payment & Shipping Terms:
|

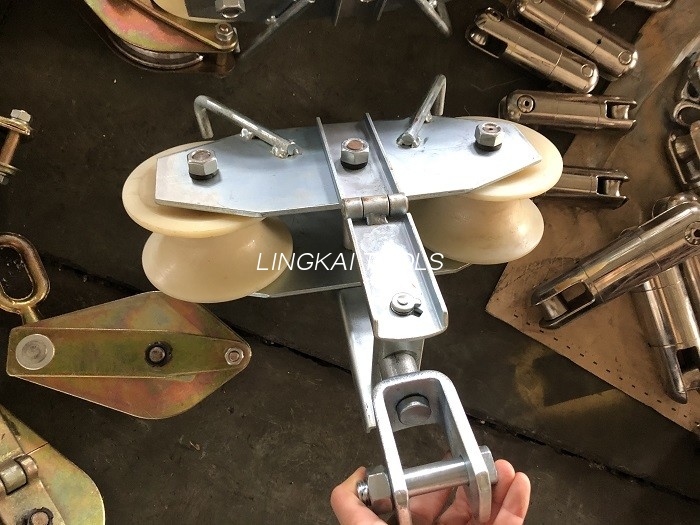

| Name: | Andem Sheave Pulley | Application Conductor: | LGJ300-500 |
|---|---|---|---|
| Rated Load: | 25KN | Sheave: | Aluminum/nylon |
| High Light: | Tandem Sheave Stringing Block,Front Rear Tandem Stringing Block,Nylon Sheave Stringing Pulley |
||
1.Apply to leading and pull large section conductor,splicing sleeve can pass through fro the groove.
2.It can be adapted to the angle iron of less than 90 degrees. When applied in line construction, our product can pull three bundles of conducting wire with small cross section each time.
| Item number | Model | Applicable Conductor | Rated load (kN) | Weight (kg) | Remark |
| 10211 | SHR-2.5 | LGJ300-500 | 25 | 11 | Aluminium sheave |
| 10212 | SHRN-2.5 | LGJ300-500 | 25 | 9.5 | Nylon sheave |
