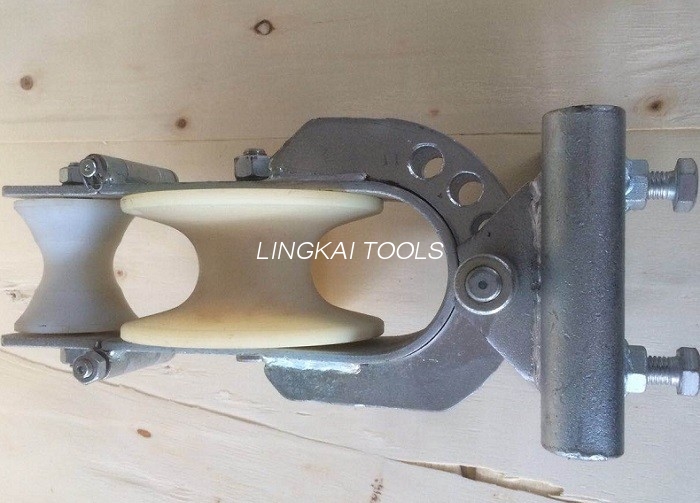

Pulley Cable Block Galvanized Crossarm Mounted Skyward Three Purpose String Block

Name: Pulley Cable Block Galvanized Crossarm Mounted Skyward Three Purpose String Block
Brand: Lingkai
SKU: SHCS 2L /2N
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (130 reviews)

Large Image : Pulley Cable Block Galvanized Crossarm Mounted Skyward Three Purpose String Block

Product Details:

Place of Origin:	Ningbo China
Brand Name:	Lingkai
Certification:	ISO CE
Model Number:	SHCS 2L /2N

Payment & Shipping Terms:

Minimum Order Quantity:	10 sets
Price:	get the latest
Packaging Details:	wooden case/ container
Delivery Time:	3-10 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	5000 sets/month

Contact Now

Detailed Product Description

Applicable Conductor:

<=240

Rated Load:

20 KN

Sheave:

Aluminum/nylon

Weight:

4.5 Kgs

High Light:

Three Purpose String Block Skyward

Galvanized Crossarm String Block

String Cable Pulley Block

Pulley Cable Block Galvanized Crossarm Mounted Skyward Three Purpose String Block

It can be used in three direction :straight, left and right.

TECHNICAL DATA

Item number	Modle	Applicable conductor	Rated load (kN)	Weight (kg)	Remark
10291	SHCS-2L	≤ACSR240	20	4.5	Aluminium sheave
10292	SHCS-2N	≤ACSR240	20	4.0	Nylon sheave

Pulley Cable Block Galvanized Crossarm Mounted Skyward Three Purpose String Block 0
