Product Details:
Payment & Shipping Terms:
|

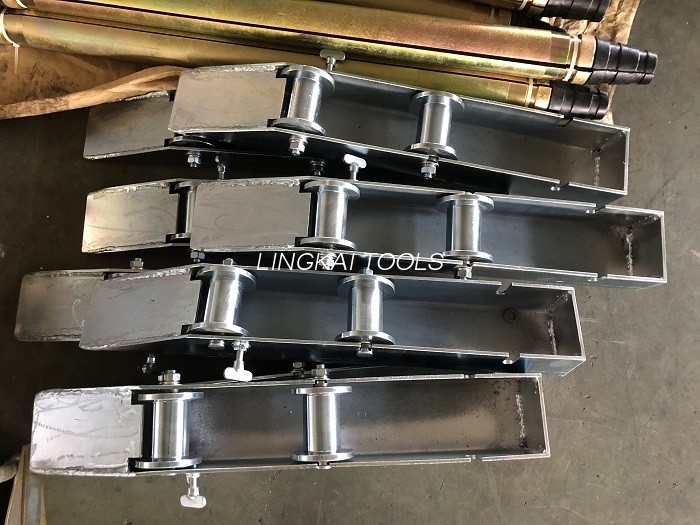

| Name: | Drum Release Cables | Model: | HZT2500 |
|---|---|---|---|
| Appllicable Drum Diameter (mm): | φ500～2500 | Maximum Weight Of Drum(kg): | 1500 |
| High Light: | Stringing Release Cables Reel Platform,Drum Release Cables Reel Stand,Drum Cable Reel Platform |
||
Using method:
1.Mountedon two roller base on the drum diameter.
2.Lock the roller on the slope.
3.Adjustroller base on the drum diameter.
4.Slopesthe drum rim up the turntable along its slants.
5.Relievethe locking roller ,then you can turn the drum .
| Item number | 21553 | 21552 | 21551 |
| Mode | HZT1250 | HZT1800 | HZT2500 |
| Appllicable drum diameter (mm) | φ500～1250 | φ500～1800 | φ500～2500 |
| Maximum weight of drum(kg) | 500 | 1500 | 1500 |
| Dimension(mm) | 470×172×105 | 650×150×145 | 900×230×130 |
| Single piece weight (kg) | 17 | 40 | 73.5 |
