Professional Overhead Line Stringing Manufacturer;
Undergroud Cable Pulling Tools Supplier.
|
Product Details:
Payment & Shipping Terms:
|

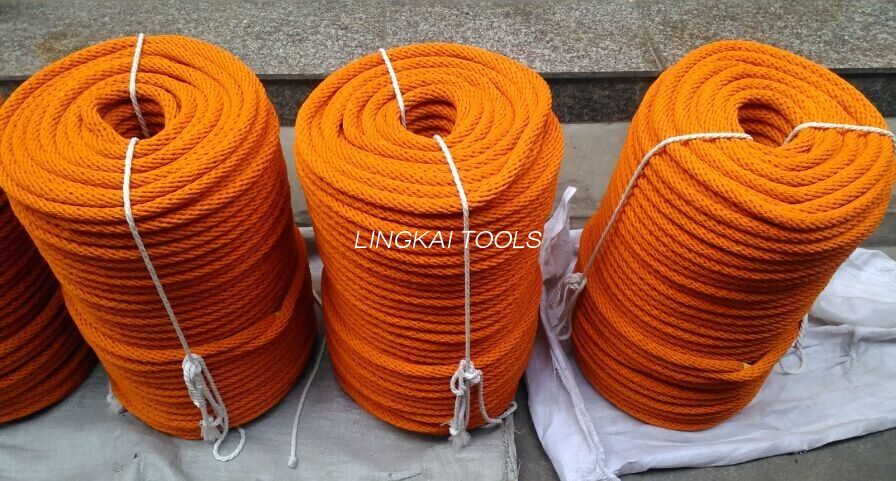

| Features: | Insulated | Name: | Silk Rope |
|---|---|---|---|
| Break Force(>N): | 4150 Max | Diameter: | 6-24mm |
| High Light: | Double Braided Silk Rope,Insulated Braided Polyester Rope,Transmission Stringing Line Insulated Rope |
||
Application
For power transmission line conductor stringing
Notes
The specification and length of steel can custom according to your request
Feature:
Pack it in rolls or according to your needs
| Diameter(MM) | Break force(>N) |
Linear density(G/M) |
Diameter(MM) | Break force(>N) |
Linear density(G/M) |
| 6 | 450 | 19±0.3 | 16 | 2000 | 115±1.5 |
| 8 | 690 | 42±0.5 | 18 | 2500 | 190±2 |
| 10 | 920 | 61±1 | 20 | 3000 | 220±3 |
| 12 | 1240 | 90±1 | 22 | 3600 | 266±3 |
| 14 | 1600 | 115±1.5 | 24 | 4150 | 315±4 |
