Product Details:
Payment & Shipping Terms:
|
| Model: | JJCS-30 JJQS-30 | Engine: | Diesel Engine R175 Honda GX270 |
|---|---|---|---|
| Engine Power(hp): | 6 &9 | Pull Force (KN) / Pull Speed (m/min): | Four Shifts |
| High Light: | Motorised Pulling Winch 3 Ton,Transmission Line Motorised Pulling Winch,Double Capastans Motorised Winch |
||

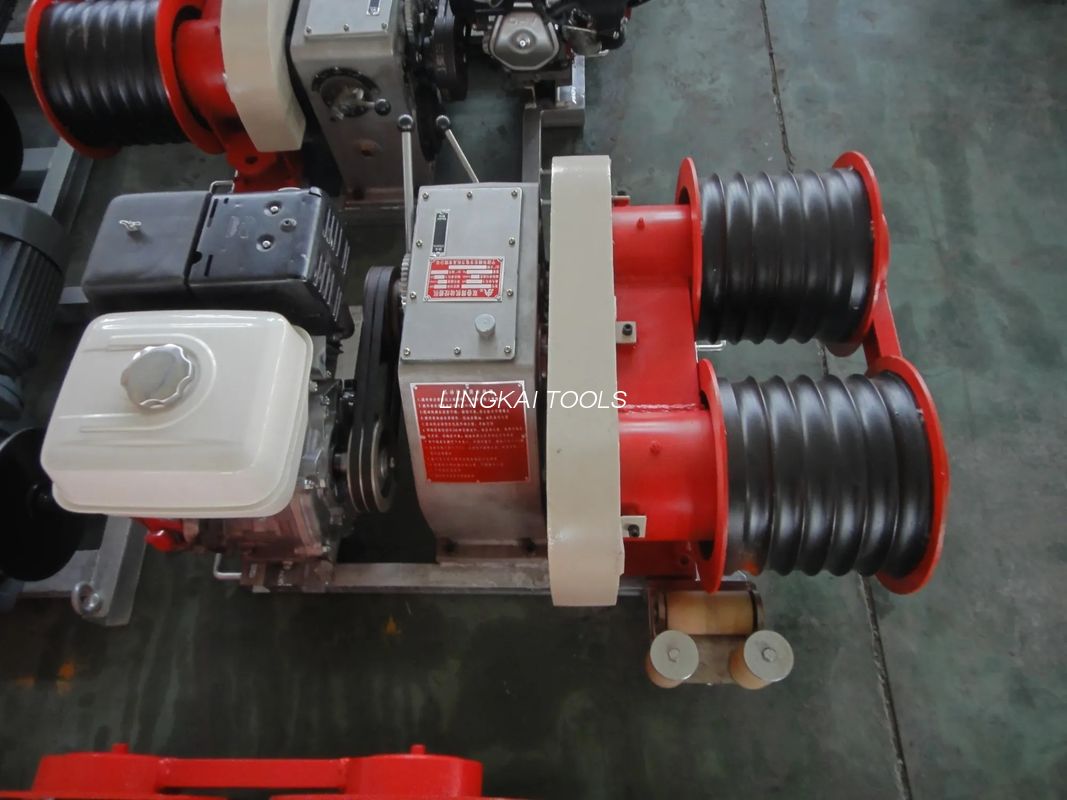

Motorised Pulling Winches are used for pulling single conductor or OPGW, earth wire in transmission line stringing operation. It is also used for pulling wire rope for tower erection and lifting goods on tower. It is equipped with two capstans for using anti twisting steel wire rope on it, so it can be used for pulling conductor or OPGW in mountain area. 3 ton and 5 ton winches are light for transporation.
Dull-bull Wheel Winches (3T)
| Item No. | 09151 | 09152 | |
| Model | JJCS-30 | JJQS-30 | |
| Engine Model | Diesel engine R175 | Honda GX270 | |
| Engine Power(hp) | 6 | 9 | |
| Engine Speed (rpm) | 2600 | 3000 | |
| Pull force (KN) / Pull speed (m/min) | I shift | 30/5.7 | 30/7.43 |
| II shift | 18.9/9.1 | 19.2/11.8 | |
| III shift | 7.6/22.7 | 7.2/31.4 | |
| Reverse shift | -/6.5 | -/8.4 | |
| Diameter of Capstan (mm) | Φ240 | Φ240 | |
| Dimension (mm) | 1000 x 670 x 600 | 1000 x 670 x 600 | |
| Weight (kg) | 260 | 242 | |
Application: It is used for tower erection, hoisting goods, conductor or earth wire stringing operation in line construction.
Features: Dual-bull wheel structure could minimize the damage to steel ropes, so it can be used with anti twisting wire rope. It is equipped with mechanical automatic brake system. Light weight, easy to operate and maintain.
