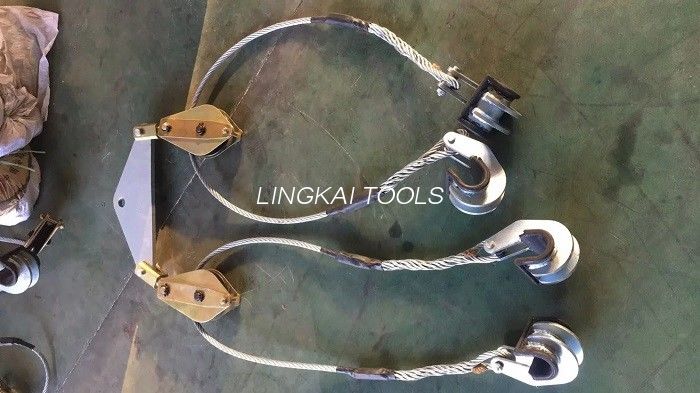

Conductor Lifting Tools For Sagging On Transmission Line

Conductor Lifting Tools For Sagging On Transmission Line
Conductor Lifting Tools For Sagging On Transmission Line Conductor Lifting Tools For Sagging On Transmission Line

Large Image :  Conductor Lifting Tools For Sagging On Transmission Line

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: ST
Payment & Shipping Terms:
Minimum Order Quantity: 10 SETS
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Detailed Product Description
Work Load (KN): 1X,2X, 4X Model: ST
Lining Length (mm): 120-265 Material: Steel And Lined With Aluminum Alloy
High Light:

Aluminum Alloy Conductor Lifting Tools

,

Conductor Stringing Lifting Hooks

,

Sagging On Transmission Line Lifting Hooks

Conductor lifter is used for lifting conductors during the sagging and installation of anex on transmission line. The product is made of steel and lined with aluminum alloy.
Conductor Lifting Plate Hooks

Item No. Model Work load (KN) Lining Length (mm) Lining Width (mm) Weight (kg)
19101 ST8 8 60 36 1
19102 ST12 12 120 48 2.5
19103 ST25 25 200 40 7
19104 ST40 40 260 50 10.5
19105 ST60 60 265 60 12

Application: Lifting hooks are used for lifting conductors on transmission line.

Customer can use it to assemble different conductor lifter according to their requirement.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.



Lifting Tools for two Bundled Conductors

Item No. Model Work load (KN) Lining Length (mm) Weight (kg)
19112 ST25R 2 x 12 120 13
19113 ST50R 2 x 25 200 26
19114 ST80R 2 x 40 260 40

Application: Conductor Lifting Tools are used for lifting 2 bundled conductors on transmission line in sagging operation or maintenance operation.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.

Conductor Lifting Tools For Sagging On Transmission Line 0

Lifting Tools for 4 Bundled Conductors

Item No. Model Work load (KN) Lining Length (mm) Weight (kg)
19115 ST50S 4 x 12 120 35
19116 ST100S 4 x 25 200 67
19117 ST160S 4 x 40 260 97

Application: Conductor Lifting Tools are used for lifting four bundled conductors on transmission line in sagging operation or maintenance operation.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.

Conductor Lifting Tools For Sagging On Transmission Line 1
