Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: HSS
Payment & Shipping Terms
Minimum Order Quantity: 10 SETS
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/month
Model: |
HSS408 4160432 |
Pulling Load (KN): |
Max 50 |
Lifting Load (KN): |
Max 32 |
Steel Rope Dia.(mm): |
Max 16 |
Model: |
HSS408 4160432 |
Pulling Load (KN): |
Max 50 |
Lifting Load (KN): |
Max 32 |
Steel Rope Dia.(mm): |
Max 16 |
Tirfor Pulling Winch is used for transmission line pulling and conductor sagging operation.
It is used with hand bar and mechanical ratchet system for tightening the steel wire rope.

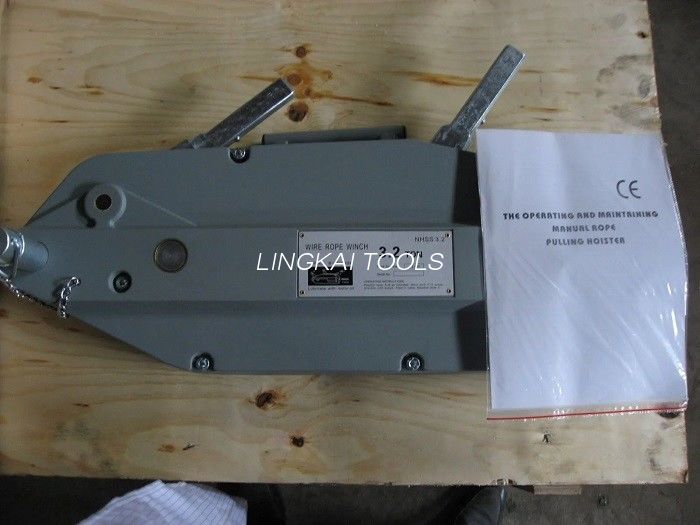

Tirfor Pulling Winch
| Item No. | Model | Lifting Load (KN) | Pulling Load (KN) | Steel Rope Dia.(mm) | Stroke (mm) | Steel Rope Length (m) | Weight (kg) |
| 14183 | HSS408 | 8 | 12.5 | Φ8 | ≥40 | 20 | 6.8 |
| 14184 | HSS416 | 16 | 25 | Φ11.6 | ≥40 | 20 | 13 |
| 14185 | HSS432 | 32 | 50 | Φ16 | ≥16 | 20 | 25 |
Application: It is used to lifting and tension operation during transmission line construction and stringing.
The working load on the handle is not more than 441 KN.
Features: With ratchet system, easy to operate and turn flexible
