Conductor Joint Protector Stiffeners For Conductor Stringing

Product Details

Place of Origin: NINGBO CHINA

Brand Name: LINGKAI

Certification: ISO

Model Number: JB JG

Payment & Shipping Terms

Minimum Order Quantity: 10 SETS

Price: get the latest

Packaging Details: wooden case packing

Delivery Time: 7-10 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 1000 sets/month

Get Best Price
Product Details
Highlight:

Conductor Joint Protector Stiffeners

,

ISO Conductor Joint Tools

,

Conductor Stringing Joint Protectors

Conductor Size (mm²):
Max To 1000/80
Model:
JB 240...1000
Name:
Conductor Joint Protectors
Appication:
Line Stringing Operation
Conductor Size (mm²):
Max To 1000/80
Model:
JB 240...1000
Name:
Conductor Joint Protectors
Appication:
Line Stringing Operation
Product Description

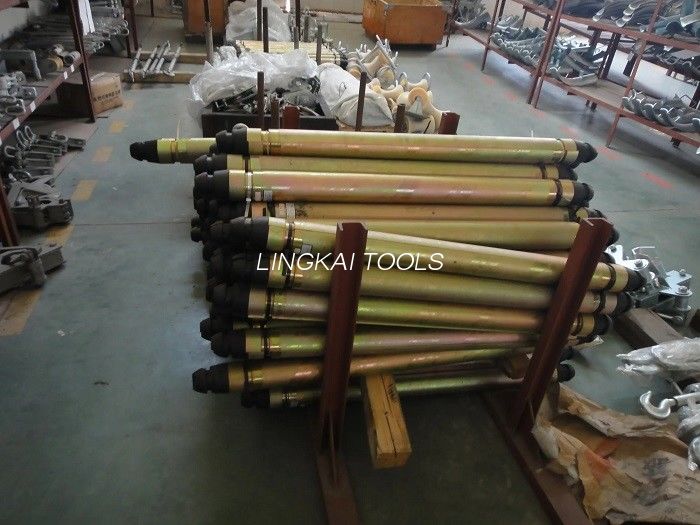

Conductor joint protectors (Stiffeners) are used to protect the conductor joint during overhead conductor stringing operation.
The cover joints consist of two pieces of shells which are made of galvanized steel. Both ends are installed with rubber parts, which protect the mid span joint during the passage over the stringing pulleys.

Conductor Joint Protector Stiffeners For Conductor Stringing 0

Conductor Joint Protectors

Item No. Model Dimension (mm) Conductor Size (mm²)
D L d L1
17201 J240B Φ45 850 Φ38 530 ACSR240/55
17202 J300B Φ51 940 Φ43 600 ACSR300/50
17203 J400B Φ57 995 Φ47 655 ACSR400/50
17204 J500B Φ68 1080 Φ56 740 ACSR500/65
17205 J630B Φ83 1180 Φ63 800 ACSR630/55
17206 J720B Φ83 1196 Φ63 816 ACSR720/50
17207 J900B Φ89 1180 Φ73 800 ACSR900/75
17208 J1000B Φ89 1240 Φ73 860 ACSR1000/80

Application: It is designed to protect the compression sleeve joints for ACSR conductor in line stringing operation,

and make them pass through stringing blocks safely.

The cover joints consist of two pieces of shells which are made of galvanized steel. Both ends are installed with rubber parts, which protect the mid span joint during the passage over the stringing pulleys.



Ground Wire Joint Protectors

Item No. Model Dimension (mm) GROUND WIRE Size (mm²)
D L d L1
17213 J55G Φ30 450 Φ24 280 50/55
17214 J70G Φ30 510 Φ24 340 65/70
17215 J80G Φ34 510 Φ27 340 80
17216 J95G Φ34 585 Φ27 415 95
17217 J100G Φ38 590 Φ28 390 100
17218 J120G Φ40 660 Φ30 440 120
17219 J150G Φ45 850 Φ37 530 150/ ACSR70/95





Application: It is designed to protect the compression sleeve joints for ground wire in line stringing operation,

and make them pass through earth wire stringing blocks safely.

Conductor Joint Protector Stiffeners For Conductor Stringing 1
