Product Details:
Payment & Shipping Terms:
|
| Name: | Fixed Joints | Model: | SLU |
|---|---|---|---|
| Material: | High Strength Alloy Steel | Application: | Power Line Stringing Operation |
| High Light: | Transmission Line Fixed Joints,Conductor Stringing Fixed Joints,Alloy Steel Pilot Wire Connector SLU |
||
Fixed Joints (Pilot wire rope connector) are used for connection of pilot wire rope (anti twisting steel wire rope) or fiber pulling rope(nylon rope or Dyneema rope) in power line stringing operation.

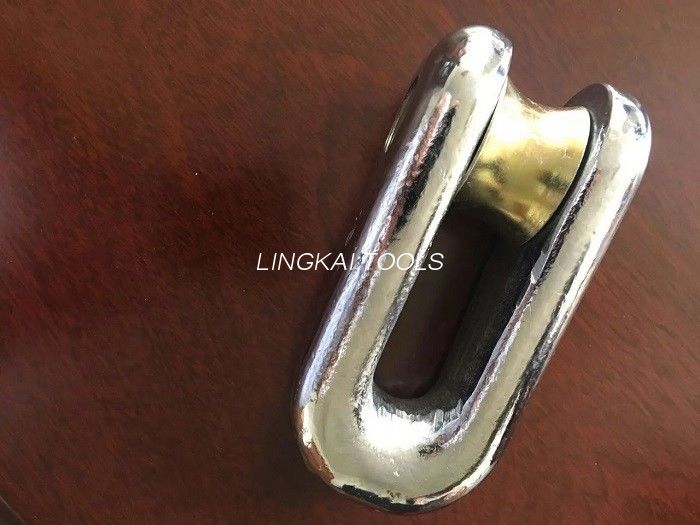

“U” Shape Pilot Wire Connectors
| Item No. | Model | Dimension of Connector (mm) | Rated Load (KN) | Weight (kg) | ||||
| A | B | C | D | E | ||||
| 17111 | SLU-1 | 36 | 68 | 18 | 14 | 24 | 10 | 0.2 |
| 17112 | SLU-3 | 37 | 76 | 20 | 17 | 28 | 30 | 0.2 |
| 17113 | SLU-5 | 50 | 98 | 23 | 19 | 43 | 50 | 0.6 |
| 17114 | SLU-8 | 58 | 120 | 28 | 25 | 52 | 80 | 1.1 |
| 17115 | SLU-10 | 59 | 126 | 30 | 26 | 54 | 100 | 1.2 |
| 17116 | SLU-13 | 61 | 134 | 32 | 27 | 56 | 130 | 1.2 |
| 17117 | SLU-15 | 63 | 138 | 37 | 28 | 58 | 150 | 1.4 |
| 17118 | SLU-25 | 80 | 178 | 44 | 35 | 72 | 250 | 3.0 |
| 17118A | SLU-28 | 80 | 178 | 44 | 35 | 72 | 280 | 3.0 |
| 17119 | SLU-32 | 85 | 186 | 42 | 38 | 80 | 320 | 3.9 |
Application: It is used to connect anti twisting steel wire rope or dyneema rope during transmission line stringing operation.
It is forged from high strength alloy steel, the axle of connector is protected with sleeve.
The fixed joints are suitable to connect anti twisting braided steelrope to pass through the bull wheels of hydraulic puller tensioner.
he special designed profile minimises the overload on the rope spliced eyes during the passage.
