Product Details:
Payment & Shipping Terms:
|
| Model: | HSH-CII1.5, 3, 6 | Chain Lenght: | Can Be Customized |
|---|---|---|---|
| Name: | Lever Blocks | Application: | Tightening Conductors |
| High Light: | Tightening Conductors Ratchet Chain Hoist,Stringing Ratchet Chain Hoist,HSH-3.0 Transmission Line Tools |
||

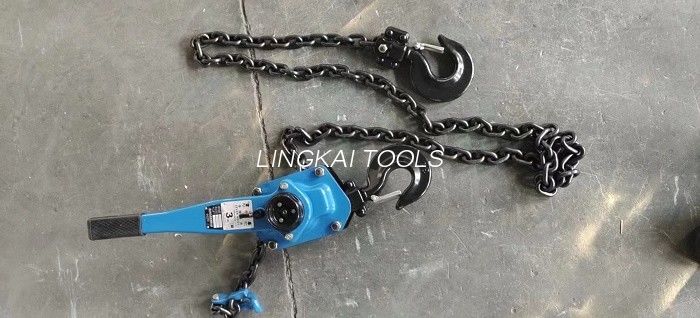

Ratchet Chain Hoist (Lever Blocks) is used for lifting goods or tightening conductors with come along clamps during sagging operation in transmission line stringing project.
Ratchet Lever Hoist with chain.
| MODEL | HSH-CII1.5 | HSH-CII3 | HSH-CII6 | |
| Item No. | 14222 | 14232 | 14242 | |
| CAPACITY (TONS) | 1.5 | 3 | 6 | |
| STANDARD LIFT (M) | 3 | 3 | 3 | |
| RUNNING TEST LOAD (KN) | 22.5 | 37.5 | 75.0 | |
| EFFORT REQUIRED TO LIFT RATED LOAD (N) | 220 | 320 | 340 | |
| STRAND NO. OF LOAD CHAIN | 1 | 1 | 2 | |
| LOAD CHAIN DIAMETER (MM) | 8 | 10 | 10 | |
| DIMENSIONS (MM) | A | 203 | 215 | 200 |
| B | 118 | 130 | 130 | |
| C | 155 | 200 | 200 | |
| D | 45 | 50 | 64 | |
| H | 380 | 480 | 600 | |
| L | 370 | 410 | 410 | |
| K | 36 | 40 | 50 | |
| NET WEIGHT (KG) | 11.8 | 21 | 32 | |
| PACK MEASUREMENT (MM) | 46.5X15.5X19 | 51X19X21.5 | 53X22X21.5 | |
| EXTRA WEIGHT OF PER METER | 1.4 | 2.2 | 4.4 | |
Application: It is used for lifting goods or pulling the conductors with come along clamps during the sagging operation.
The solid bearing is adopted in the joint of load sprocket wheel and wall panel,
to improve the flexibility and working efficiency. Mechanical braking system is available for safety.
