Hydraulic Compressor With Motorised Pump Of Transmission Line Stringing Tools

Hydraulic Compressor With Motorised Pump Of Transmission Line Stringing Tools
Hydraulic Compressor With Motorised Pump Of Transmission Line Stringing Tools Hydraulic Compressor With Motorised Pump Of Transmission Line Stringing Tools Hydraulic Compressor With Motorised Pump Of Transmission Line Stringing Tools

Large Image :  Hydraulic Compressor With Motorised Pump Of Transmission Line Stringing Tools

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: QY
Payment & Shipping Terms:
Minimum Order Quantity: 1 SETS
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 3-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/month
Detailed Product Description
Die: Customized Per Drawings Pump Engine: Honda Gas/ Electrical/diesel Pump
Ton: 125 T, 200T Max. Oil Pressure (MPa): 94
High Light:

Motorised Pump Hydraulic Compressor

,

Hydraulic Compressor Transmission Line Stringing Tools

,

1250KN Transmission Line Stringing Tools

Hydraulic Compressor with Motorised Hydraulic Pump is used for conductor jointing on transmission line stringing operation. Our hydraulic pump is equipped with honda petrol engine, fast speed and very stable, easy to use and maintenance.



HYDRAULIC PRESS 125 TON

Item No. Model Max. Compress Force (KN) Max. Oil Pressure (MPa) Conductor Range (mm²) Stroke (mm) Weight (kg)
16104 QY-125 1250 94 ≤ACSR720 25 40

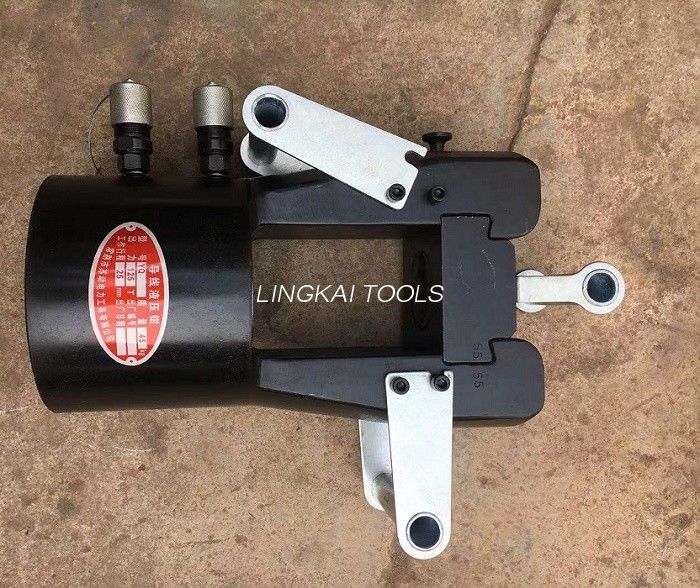

Application: The hydraulic compressor head is used with motorised hydraulic pump for compression of conductor joint or earth wire joint. It is casted from high strength steel.

Hydraulic Compressor With Motorised Pump Of Transmission Line Stringing Tools 0

High Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No. Description Hydraulic Pressure (MPa) Oil Flow (L/min) Power (KW) Weight (kg)
16146 Gasoline motor driven hydraulic pump station mounted on hand cart 75 1.5 4.41 68

Note: The pump stations only act as power sources for hydraulic compressors or other equipment.
The Gasoline motor is HONDA GX160.
The length of standard hydraulic Hose is 3 meters. Longer Hose is optional.

Hydraulic Compressor With Motorised Pump Of Transmission Line Stringing Tools 1

Hexagon Compression Die sets for Conductor & Earth Wire Jointing

Item No. Matching Compressor Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16124 QY-125 L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55,60 mm
G -12, 14, 16, 18, 20, 22, 24, 26 mm

Note: the Hexagonal Die sets Size could be made according to the requirement of customer.

Hydraulic Compressor With Motorised Pump Of Transmission Line Stringing Tools 2
