Product Details:
Payment & Shipping Terms:
|
| Description: | Single, Double, Three Sheaves | Rated Load (KN): | Max 150 |
|---|---|---|---|
| Rope Dia. (mm): | 26 | Fitting Style: | Hook, Eye, Clevis |
| High Light: | Steel Tackle Blocks Lifting Pulleys,Steel Tower Erection Tools,Three Sheaves Lifting Pulleys |
||

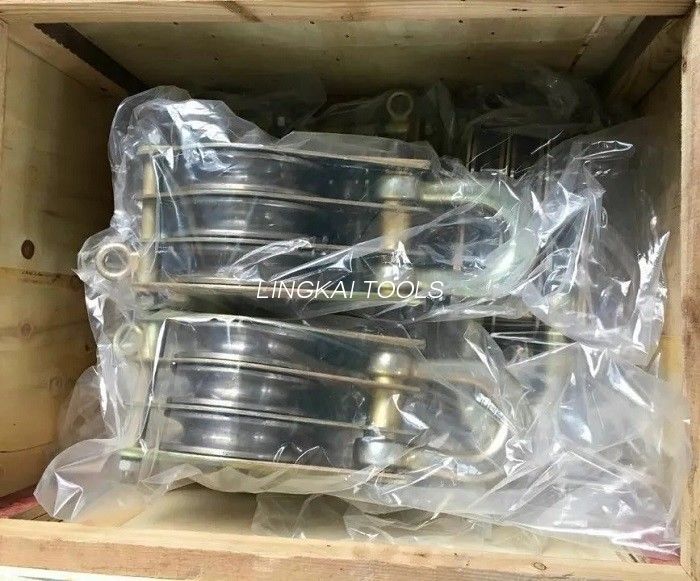

Tower Erection Tools Steel Tackle Blocks are used for lifting goods or pulling steel wire rope in tower erection operation on transmission line.
They are used together with aluminum alloy gin poles, motorised winches, shackles, steel turnbuckles etc.
Steel Tackle Blocks Lifting Pulleys
| Item No. | Model | Description | Rated Load (KN) | Rope Dia. (mm) | Weight (kg) | Fitting Style |
| 11181 | QH1-1 | Single sheave, open | 10 | Φ7.7 | 2.8 | Hook, eye |
| 11182 | QH2-1 | Double sheaves | 10 | Φ5.7 | 2.8 | Hook, eye |
| 11183 | QH3-1 | Three sheaves | 10 | Φ5.7 | 4.1 | Hook, eye |
| 11191 | QH1-2 | Single sheave, open | 20 | Φ11 | 4.2 | Hook, eye |
| 11192 | QH2-2 | Double sheaves | 20 | Φ7.7 | 4.2 | Hook, eye |
| 11193 | QH3-2 | Three sheaves | 20 | Φ7.7 | 6 | Hook, eye |
| 11201 | QH1-3 | Single sheave, open | 30 | Φ12.5 | 7 | Hook, eye, clevis |
| 11202 | QH2-3 | Double sheaves | 30 | Φ11 | 5.3 | Hook, eye |
| 11203 | QH3-3 | Three sheaves | 30 | Φ7.7 | 6.5 | Hook, eye |
| 11211 | QH1-5 | Single sheave, open | 50 | Φ15.5 | 9.6 | Hook, eye |
| 11212 | QH2-5 | Double sheaves | 50 | Φ12.5 | 10.8 | Hook, eye |
| 11213 | QH3-5 | Three sheaves | 50 | Φ11 | 7.7 | Hook, eye |
| 11221 | QH1-8 | Single sheave, open | 80 | Φ18.5 | 12.5 | Hook, eye, clevis |
| 11222 | QH2-8 | Double sheaves | 80 | Φ15.5 | 17 | Eye |
| 11223 | QH3-8 | Three sheaves | 80 | Φ12.5 | 17.5 | Eye |
| 11231 | QH1-10 | Single sheave, open | 100 | Φ20 | 15 | Hook, eye, clevis |
| 11232 | QH2-10 | Double sheaves | 100 | Φ18.5 | 20 | Eye |
| 11233 | QH3-10 | Three sheaves | 100 | Φ12.5 | 20 | Eye |
| 11241 | QH1-15 | Single sheave, open | 150 | Φ26 | 38 | Hook, eye, clevis |
| 11242 | QH2-15 | Double sheaves | 150 | Φ20 | 41 | Eye |
| 11243 | QH3-15 | Three sheaves | 150 | Φ15.5 | 44 | Eye |
| 11244 | QH4-15 | Four sheaves | 150 | Φ15.5 | 46 | Eye |
Application: They are used for pole and tower erection, line construction, equipment hoisting and other lifting applications.
The steel sheaves are installed on high quality ball bearings. The frames are made in galvanized steel.
Note: Please specify the fitting styles (hook, eye, clevis) when ordering.
We have exported our tackle blocks to more than 50 countries in the world.
