Tower Erection Tools Steel Turnbuckles for Transmission Line Working

Tower Erection Tools Steel Turnbuckles for Transmission Line Working
Tower Erection Tools Steel Turnbuckles for Transmission Line Working Tower Erection Tools Steel Turnbuckles for Transmission Line Working

Large Image :  Tower Erection Tools Steel Turnbuckles for Transmission Line Working

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: SJS
Payment & Shipping Terms:
Minimum Order Quantity: 10 SETS
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 3-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/month
Detailed Product Description
Application: Tighten Ropes Max. Adjustable Distance (mm): Max600
Max. Center-Center Distance (mm): Max 1740 Rated Load (KN): Max 100
High Light:

Tower Erection Steel Turnbuckles

,

Transmission Line Working Steel Turnbuckles

,

Steel Double Hook Turnbuckle

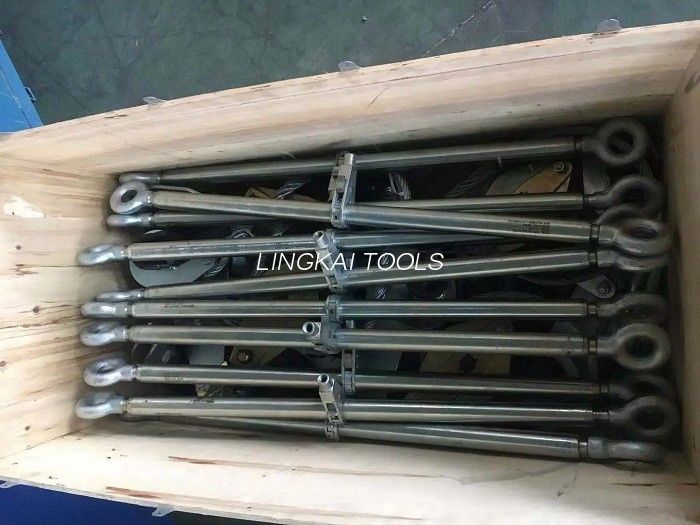

Steel Turnbuckles are used as tower erection tools for assemble steel tower parts, tighten steel wire rope on transmission line.

Tower Erection Tools Steel Turnbuckles for Transmission Line Working 0



Steel Double Hook Turnbuckles (Or Eye type on both ends)

Item No. Model Rated Load (KN) Max. Center-Center Distance (mm) Max. Adjustable Distance (mm) Weight (kg)
14111 SJS-0.5 5 730 230 2.5
14112 SJS-1 10 840 280 3.5
14113 SJS-2 20 1030 330 4
14114 SJS-3 30 1350 460 6
14115 SJS-5 50 1440 500 8
14116 SJS-8 80 1660 580 8.5
14117 SJS-10 100 1740 600 10

Application: It is used to tighten steel wire ropes or steel stranded wires on overhead transmission line.

The special tools can be used as tension tools for tower erection or conductor sagging operation.

The distance of double hooks can be adjusted with ratchet mechanical system in the center of turnbuckles.

Tower Erection Tools Steel Turnbuckles for Transmission Line Working 1
