Ningbo Lingkai Electric Power Equipment Co., Ltd. nbtransmission@163.com 86--15958291731
Product Details
Place of Origin: NINGBO
Brand Name: NBLK
Certification: ISO CE
Model Number: JJQ30 JJQ50JJQ80
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 500sets/month
Driven Type: |
Shaft Driven |
Power (KW): |
4.04; 6.61 |
Trademark: |
NBLK |
Traction Force(KN): |
30 Kn 50 Kn |
Transport Package: |
WOODEN CASE |
Travel Speed(m/min): |
24,13 |
Package Gross Weight: |
94 Kgs, 138kgs |
Drum Feature: |
Detachable |
Driven Type: |
Shaft Driven |
Power (KW): |
4.04; 6.61 |
Trademark: |
NBLK |
Traction Force(KN): |
30 Kn 50 Kn |
Transport Package: |
WOODEN CASE |
Travel Speed(m/min): |
24,13 |
Package Gross Weight: |
94 Kgs, 138kgs |
Drum Feature: |
Detachable |
The CAPSTAN WINCH is a product that has been manufactured with precision after extensive research and development. The motor-capstan winch, known as the JJ-5B type, is equipped with a range of linear velocity, from 4 to 24 meters per minute. Moreover, the product has multi-shift gears which make it much more efficient and versatile.
The power system and gearbox in this product uses the straight shaft link, which gives it a more compact configuration without compromising on its safety and reliability. The product is widely used in various fields such as electricity transmission, telecom, railway, and port infrastructure construction. It is an essential tool that is used for erecting poles and wires, fastening wires, and hoisting.
Fast powered shaft driven winch data sheet
| Item number | Model |
Rotation direction |
Gear |
Tractive force (T) |
Traction speed (M/MIN) |
Power (KW) |
Outline size (MM) |
Weight (KG) |
| 09131 |
JJQ-30 6HP Gasoline engine |
corotation | SlowⅠ | 3.0 | 5 | 4.04 | 900x400x430 | 94 |
| SlowⅡ | 2.0 | 7 | ||||||
| FastⅠ | 0.9 | 16 | ||||||
| FastⅡ | 0.6 | 24 | ||||||
| reversal | Slow | No lifting | 4 | |||||
| Fast | 13 | |||||||
| 09131A |
JJC-3 5HP Diesel engine |
corotation | SlowⅠ | 3.0 | 5 | 2.90 | 1000x450x500 | 115 |
| SlowⅡ | 2.0 | 7 | ||||||
| FastⅠ | 0.9 | 16 | ||||||
| FastⅡ | 0.6 | 24 | ||||||
| reversal | Slow | No lifting | 4 | |||||
| Fast | 13 | |||||||
| 09135 |
JJQ-5B 9HP Gasoline engine |
corotation | FastⅠ | 0.9 | 24 | 6.6 | 1100x525x600 | 138 |
| FastⅡ | 1.5 | 13 | ||||||
| SlowⅠ | 2.5 | 8 | ||||||
| SlowⅡ | 5.0 | 4 | ||||||
| reversal | Slow | No lifting | 4 | |||||
| Fast | 18 | |||||||
| 09135A |
JJC-5B 186F Diesel engine |
corotation | FastⅠ | 0.9 | 24 | 5.7 | 1000x498x600 | 148 |
| FastⅡ | 1.5 | 13 | ||||||
| lowⅠ | 2.5 | 8 | ||||||
| SlowⅡ | 5.0 | 4 | ||||||
| reversal | Slow | No lifting | 4 | |||||
| Slow | 18 |
The JJ-5B winch is a traction tool that does not require an electric source. This product is perfect for areas without electricity such as river-concentrated and mountainous areas. The winch is equipped with a gasoline engine, clutch, gearbox, and planetary reducer (PIC1) which gives it several advantages such as being lightweight, compact, and having a high pulling force.
The JJ-5B winch is easy to maintain, overhaul, and operate. Its design ensures low levels of complexity while still being able to function optimally. This makes it popular with users who require a durable winch.
The compact size of the JJ-5B winch makes it an ideal tool for transportation. Its lightweight feature increases its mobility. Due to its suitability for use in areas without an electric source, the winch is perfect for mining operations, forestry, and agriculture.

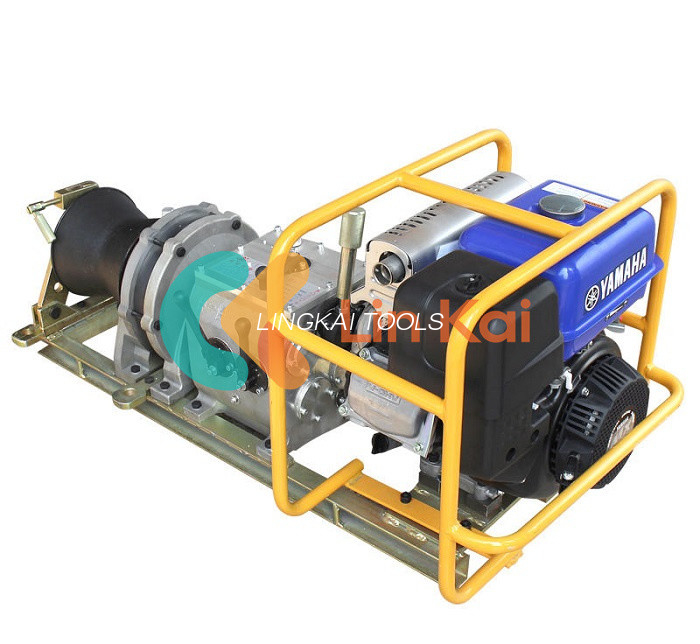

Picture 1: JJ-5B winch
The JJ-5B type capstan winch is equipped with a Honda 390 gasoline engine, which has a rated power of 6.6kw and can be started with a hand rope. Meanwhile, the JJC-5B type capstan winch comes with an 186F type direct injection diesel engine, with a rated power of 5.7kw and can be started with a hand crank. Both the gasoline and diesel engines are known for their high reputation, reliability, easy maintenance and operation in China.
The elastic couplet shaft device passes the movement and power to the synchronous moving fixed seat through the clutch. When the clutch handle rotates, it promotes the activities wheel and fixed taper surface to contact, after which the clutch outputs movement and power through friction. The clutch is characterized by good fixed centricity, strong suction vibration ability, great transmitting torque, smooth and flexible operation, and free clutch. Additionally, the clutch handle is equipped with a lateral or radial positioning device to facilitate long hours of work.
The gearbox directly inputs the engine’s movement and power through the clutch. It adopts cylindrical gear transmission and spline connection straight tooth to shift as per the speed required by the whole machine. The gearbox is compactly structured, small in volume, and easy and flexible to operate, with sensitive shift.
The braking agency of the machine uses a combination of a main brake and a hand brake. The main brake adopts the beyond type one-way brake, which is installed on the output shaft in the gearbox. The hand brake is controlled by the clutch handle, and is capable of stopping the gearbox’s movement by friction when the clutch withdraws, achieving the braking effect.
This product adopts the involute one tooth differenced planetary reducer (PIC2), composed of the partiality axis, inside gear ring, two upward symmetrically arranged planetary gears and output institution. The reducer is characterized by great transmission ratio, compact structure, small volume, light weight, and long service life, among other features.
The winch roller uses high-quality steel and is connected with the output shaft of the planetary reducer. It adopts the rolling bearing and sliding bearing combination unloading force device. Additionally, the winch roller uses an activities supporting bracket for easy loading and unloading the steel wire rope.
The NBLK cable winch puller is an essential tool for various industries such as construction, mining, and forestry. It is commonly used in power line construction, tower erection, and cable laying applications. With its detachable drum feature and four-gear system, the cable winch puller can handle heavy loads with ease. The product is also equipped with a gasoline engine, making it a gas engine powered capstan winch or gasoline engine cable pulling winch.
The NBLK cable winch puller has a minimum order quantity of 1 and is priced according to the latest market rates. Its packaging details include a wooden case that ensures safe transportation. The delivery time for this product is between 3-7 days, and the payment terms are T/T. With a supply ability of 500 sets per month, the NBLK cable winch puller is readily available for various industrial needs.
In the construction industry, the NBLK cable winch puller is used to move heavy construction materials from one location to another. It is ideal for lifting and hoisting heavy beams, steel frames, and concrete slabs. The product is also widely used in the mining industry to pull and lift heavy equipment. In the forestry industry, the cable winch puller is used to move large logs and clear wooded areas.
In summary, the NBLK cable winch puller is a reliable and versatile tool that can handle various heavy-duty applications. Its gas engine powered capstan winch or gas powered winch feature makes it an ideal choice for applications where electricity is not available. With its high traction force and detachable drum feature, the NBLK cable winch puller can handle a wide range of industrial needs.
