Angled Cross Arm Mounted Hook Style Conductor Stringing Blocks

Angled Cross Arm Mounted Hook Style Conductor Stringing Blocks
Angled Cross Arm Mounted Hook Style Conductor Stringing Blocks Angled Cross Arm Mounted Hook Style Conductor Stringing Blocks Angled Cross Arm Mounted Hook Style Conductor Stringing Blocks

Large Image :  Angled Cross Arm Mounted Hook Style Conductor Stringing Blocks

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHCN SHC
Payment & Shipping Terms:
Minimum Order Quantity: 5SETS
Price: GET THE LATEST
Packaging Details: WOODEN CASE
Delivery Time: 5-8 WORK DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH
Detailed Product Description
MODEL: SHCN SHC MATERIAL: AL,MC NYLON
FEATURES: WITH BEARING RATED LOAD: 5~20KN
BREAKING FORCE: 15~60KN NAME: CROSSARM MOUNTED BLOCK
High Light:

overhead line stringing block

,

transmission line stringing block

SHCN Angled Crossarm Mounted Stringing Block Hook Style Pulley Block

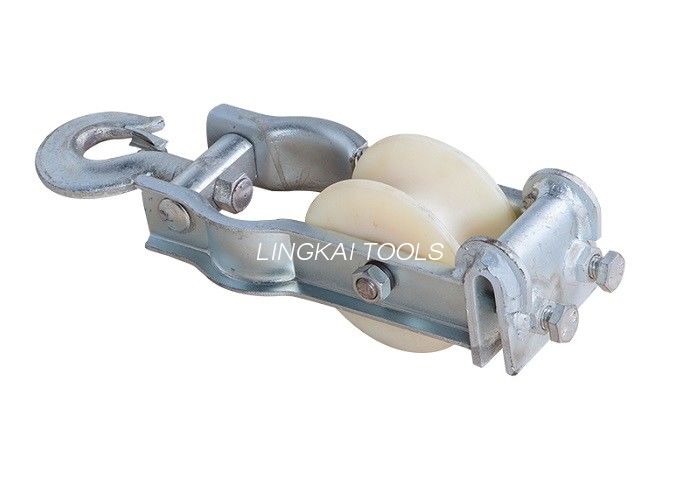

Crossarm mounted hook style block are made of aluminium alloy / MC nylon mounted on ball bearings
Angled Cross Arm Mounted Hook Style Conductor Stringing Blocks 0Angled Cross Arm Mounted Hook Style Conductor Stringing Blocks 1
Crossarmmounted hook style block
Crossarmmounted hook style block are made of aluminium alloy/ MC nylon mounted on ball bearings; the groove is lined by a neoprene ring orby wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanizedsteel. The pulleys can be supplied with three types of connections: fixed(B),swivel-type(C) or with a hook supplied with safety lock(D). Grounding device orcomplete conductive sheaves can be supplied on demand.
Ordernumber Model Outsidediameter ×width (mm) Ratedload (kN) Weight(kg) Features
10261 SHC-80×50 Φ80×50 5 1.9 Aluminoussheave
10262 SHC-120×30 Φ120×30 5 2.1
10263 SHC-160×40 Φ160×40 10 2.5
10264 SHC-120×58 Φ120×58 20 3.5
10271 SHCN-80×50 Φ80×50 5 1.4 Nylonsheave
10272 SHCN-120×30 Φ120×30 5 1.6
10273 SHCN-160×40 Φ160×40 10 2
10274 SHCN-120×58 Φ120×58 20

2.5

Angled Cross Arm Mounted Hook Style Conductor Stringing Blocks 2

Angled Cross Arm Mounted Hook Style Conductor Stringing Blocks 3

Angled Cross Arm Mounted Hook Style Conductor Stringing Blocks 4
