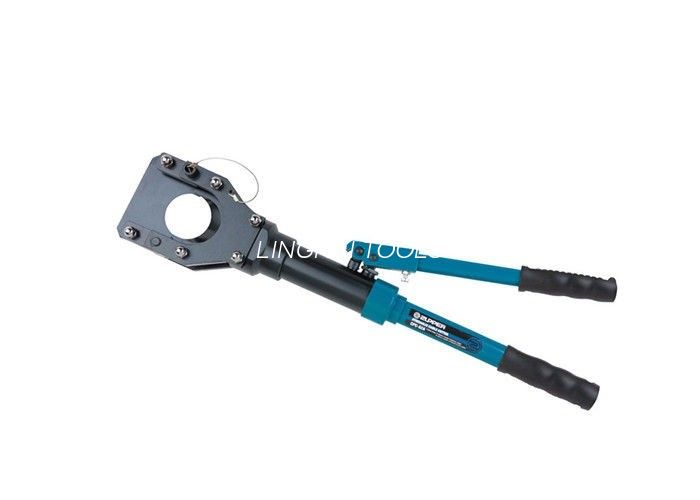

Double Speed Hydraulic Cable Cutter , Steel Blade Hydraulic Wire Cutter

large.img.alt
small.img.alt small.img.alt

Large Image :  Double Speed Hydraulic Cable Cutter , Steel Blade Hydraulic Wire Cutter

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: CPC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Steel case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 pcs / moth
Detailed Product Description
Model: CPC-50A Stroke: 50mm
Force: 65KN Weight: 7.1kg
Length: 630mm Name: Hydraulic Wire Rope Cutter
High Light:

powerline construction tools

,

construction tools and equipments

Hydraulic Cable Cutter For Cutting Amoured Cable,Hydraulic Cable Cutter



TECHNICAL DATA
Item No: CPC-50A
Cutting range:

dia 50mm max(for telephone)

dia 45mm(for armoured Cu/Alu cable)

Crimping force: 65KN
Stroke: 50mm
Length: approx.630mm
Weight: approx.7.1kg
Package: Steel case

FEATURES

CPC-50A Safety Hydraulic Hand Manual Armoured Cu/Al Cable Cutter

1. Flip top cutting head rotates 350degree

2. Two stage hydraulic to reduce cutting cycle automatic release pressure when cut is complete

3. Manual release in case of need

Hydraulic Wire Cutter For 40mm Cu/Alu Cable And 32mm Armoured Cu / Alu Cable

Introduce: this CPC 50A is cutting range from diameter 50mm max to the telephone, and 45mm max for the armoured Cu/Alu cable, crimping force 65KN, while stroke is 50mm, length is 630mm, 7.1kg. packed in the steel case.

Features: Flip top cutting head rotates 350 degree, two stage hydraulic to reduce cutting cycle automatic release pressure when cut is complete, manual release in case of need.

Double Speed Hydraulic Cable Cutter , Steel Blade Hydraulic Wire Cutter 0Industrial Hydraulic Wire Cutter 32mm Armoured / 40mm Cu / Alu Cable

TECHNICAL DATA
Item No: CPC-40A
Cutting range:

dia 40mm max (for telephone cable)

dia 32mm max(for armoured Cu/Alu cable )

Crimping force: 60KN
Stroke: 48mm
Length: approx.580mm
Weight: approx.5.2kg
Package: Steel case

FEATURES

CPC-40A Industrial cordless hydraulic tools cutting tool for cable

1.Flip top cutting head rotates 350degree

2.Two stage hydraulic to reduce cutting cycle automatic release pressure when cut is complete

3.Manual release in case of need

Hydraulic Cable Cutter for Cutting Amoured Cable,Use and Characteristic

1 Applicable to cutting the copper aluminum power cable or communication cable.

2 Double speed design, cutting fast and security effort.

3 With the high quality special steel blade by heat treatment processing , for long service life.

4 The product structure compact, easy and handy to carry in aerial work , no need to use high pressure oil.
