Ningbo Lingkai Electric Power Equipment Co., Ltd. nbtransmission@163.com 86--15958291731
Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO
Model Number: SI
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 3 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200sets/day
Features: |
With Small Wheels |
Name: |
Hydraulic Cable Reel Stands |
Advantage: |
Easy To Transportation |
Hydraulic Jack: |
Both Side Is 15T |
Rated Load: |
200KN |
Service: |
After Service Is Availavle |
Features: |
With Small Wheels |
Name: |
Hydraulic Cable Reel Stands |
Advantage: |
Easy To Transportation |
Hydraulic Jack: |
Both Side Is 15T |
Rated Load: |
200KN |
Service: |
After Service Is Availavle |
High Performance 15T-20T Cable Handling Equipment Cable Drum Hydraulic Reel Stand
Hydraulic Cable Drum Reel Stand / Elevator Cable Jack Stand
|
Item number |
Model |
KN) Rated Load |
(MM) Applicable Cable Reel |
(KG) Weight |
||
| Diameter | Width |
Hole Diameter |
||||
| 21346 | SI-5 | 50 | ≤ Φ2400 | ≤1600 | Φ76-103 | 172 |
| 21347 | SI-10 | 100 | ≤ Φ2700 | ≤1700 | Φ120-135 | 230 |
| 21348 | SI-10A | 100 | ≤ Φ3400 | ≤1900 | Φ120-135 | 230 |
| 21343 | SI-20 | 200 | ≤ Φ4000 | ≤2500 | Φ135-160 | 450 |

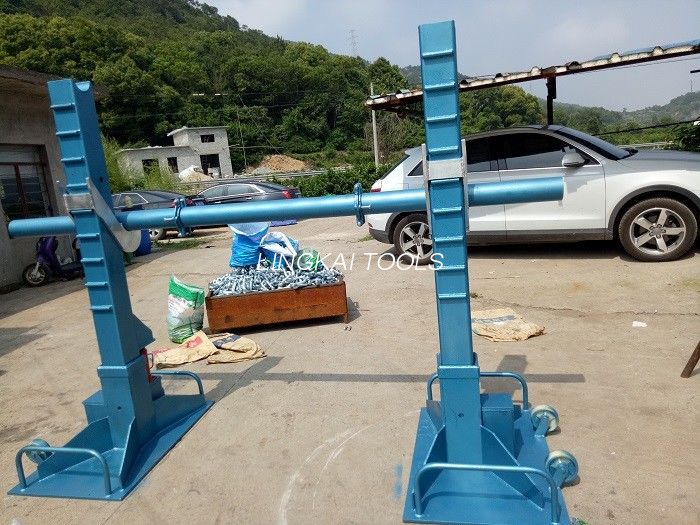

This electrical cable stand, cable drum stands is applied for carrying cable reel in the line constructions, it has the hydraulic lifter,and shaft. bottom has the samll wheels for the easy moving in site
Mechanical cable reel stand cable drum jack
1. 20 rated load
2. Power construciton tools, in line construction site
3. SI20
4. Donghuan Brand
5. 1 years warranty, and Tech support any time, if spare parts is not ok within 1 year, freely return.
Hydraulic lifting jack stand, drum stands for cable drum lifting.
1. According to the lifting form, it can be divided into hydraulic cable release frame and mechanical cable release support.
2. According to its usage and structure, it can be divided into adjustable hydraulic release frame, column release frame, top rod cable release frame, horizontal cable disc frame, foot brake cable release frame, disassembly cable release frame and tension release frame.
3. According to the load capacity, it can be divided into: 3T cable release frame, 5T cable release frame, 10T cable release frame, 15T cable disk support, 20T cable disk support and larger tonnage cable disk release support.
