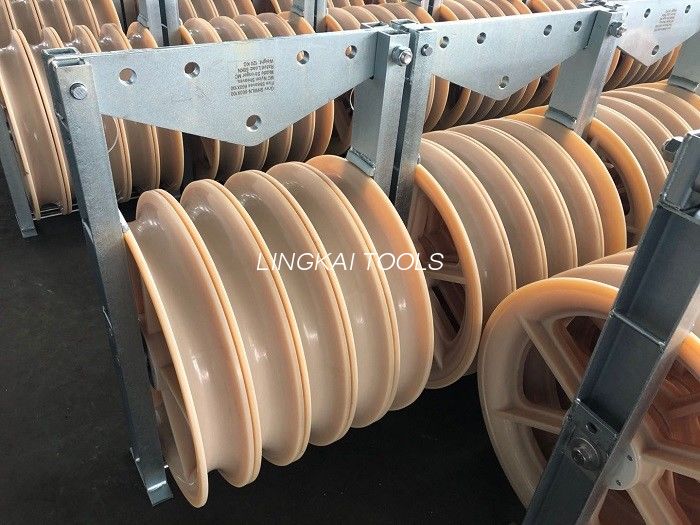

660 Mm Five Bundled Conductor Stringing Pulley Block

660 Mm Five Bundled Conductor Stringing Pulley Block
660 Mm Five Bundled Conductor Stringing Pulley Block 660 Mm Five Bundled Conductor Stringing Pulley Block 660 Mm Five Bundled Conductor Stringing Pulley Block

Large Image :  660 Mm Five Bundled Conductor Stringing Pulley Block

Product Details:
Place of Origin: Ningbo
Brand Name: Linkai
Certification: ISO
Model Number: 508mm large blocks
Payment & Shipping Terms:
Minimum Order Quantity: 10sets
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 800 sets/month
Detailed Product Description
Application: Widely Used Performace: Durable, Corrosion Resistant
Service: After-Sales Service Name: Cable Pulley Block
Type: Stringing Blocks Size: 508mm Stringing Blocks
High Light:

overhead line stringing block

,

transmission line stringing block

,

Five Bundled Conductor Stringing Blocks

508mm Large Diameter Stringing Block Nylon Sheave Lifting Cable Pulley Electric Block For Conductors



508 mm stringing blocks

508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction. We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing. 1.Maximum suitable conductor ACSR400.Configuration: 2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75 (mm) 3.Sheave dimension Φ508×Φ408×100 (mm) can be customized



Technical Data

Item number Model Number of sheaves Rated load (kN) Weight (kg)



Features

10101 SHD508 1 20 18 Rubber lined aluminium sheave
10102 SHS508 3 40 61

Middle : Cast steel sheave

Conductor : Rubber lined aluminium sheave

10103 SHW508 5 60 93
10104/10104A SHDN508 1 20 16 MC nylon sheave
10105 SHSLN508 3 40 47



Middle : MC nylon sheave

Conductor : Rubber lined aluminium sheave

10106 SHWLN508 5 60 79
10107/10107A SHSQN508 3 40 38 MC nylon sheave
10108/10108A SHWQN508 5 60 70



660 Mm Five Bundled Conductor Stringing Pulley Block 0
