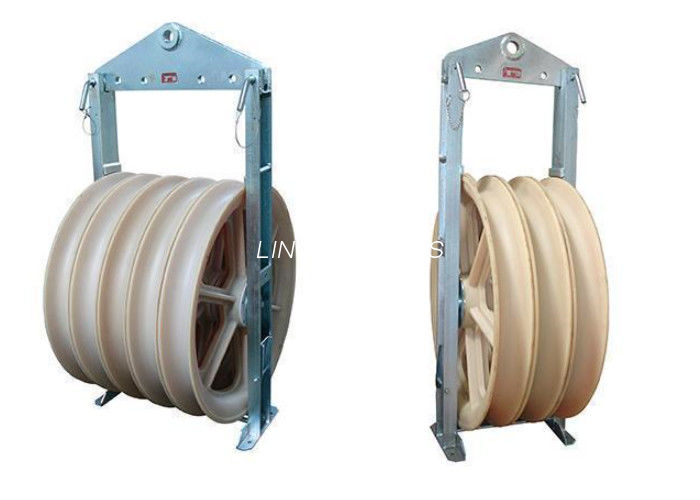

Large Diameter Conductor Cable Pulling Pulley Stringing Block MC Nylon Block

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: SHD660

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiable

Packaging Details: Std export term

Delivery Time: 15-20 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 1000 pcs / month

Get Best Price
Product Details
Highlight:

overhead line stringing block

,

stringing pulley block

Materail:
MC Nylon, Cast-steel Sheave
Item:
Overhead Line Stringing Pulley
Weight:
100kg
Name:
Stringing Block
Conductor:
Rubber Lined Aluminum Sheave
Model:
SHD660
Materail:
MC Nylon, Cast-steel Sheave
Item:
Overhead Line Stringing Pulley
Weight:
100kg
Name:
Stringing Block
Conductor:
Rubber Lined Aluminum Sheave
Model:
SHD660
Product Description
660mm ACSR500 Large Diameter Conductor Stringing Block, MC Nylon Block





Quick details:
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Bundled Conductor Pulley
3. Diameter: 660mm, Width: 110mm
4. One, Three, Five wheel
5. With Rubber Covered or Without

6.Middle:cast steel sheave.



Application
In transmission power line and communications cable installation work, stringing job is a must , and various of tools will be applied for this job, in which conductor stringing block is one of them. It is a very good tool to protect cables and conductors.



Conductor Pulley Block Specifications

Item Number Model Number of Sheave

Rated Load

(kN)

Weight (kg) Features
10121 SHD660 1 20 30 Rubber coated aluminum sheave
10122 SHS660 3 40 106 Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave
10123 SHW660 5 60 150
10124 SHDN660 1 20 24 MC nylon sheave
10125 SHSLN660 3 40 92 Middle: MC nylon sheave Conductor: rubber coated aluminum sheave
10126 SHWLN660 5 60 120
10127 SHSQN660 3 40 76 MC nylon sheave
10128 SHWQN660 5 60 110
10129 SHQZ660 7 80 268 Middle: cast steel sheave Conductor: rubber coated aluminum sheave
10130 SHQ660A 7 75 190 Middle: cast steel sheave Conductor: MC nylon sheave
