Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SJL
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Name: |
Grounding Block |
Cable: |
Conductor, Earthwire, Steel Wire |
Weight: |
5.7kg |
Wheel: |
Cast Steel Or Aluminum Steel |
Model: |
SJL |
Max Cable Dia: |
48mm |
Name: |
Grounding Block |
Cable: |
Conductor, Earthwire, Steel Wire |
Weight: |
5.7kg |
Wheel: |
Cast Steel Or Aluminum Steel |
Model: |
SJL |
Max Cable Dia: |
48mm |

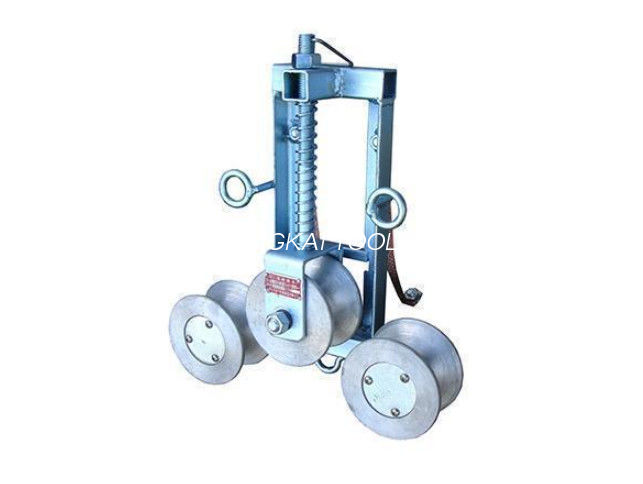

SJL Model Grounding Pulley Block To Eliminate Induced Static Electricity
Grounding Block Data
SJL Model Grounding Pulley Block To Eliminate Induced Static Electricity:
Model SJL, material of sheave can be cast aluminum and cast steel, applicable for conductor and steel wire rope, earth wire. Root diameter of sheave is 46mm, 56mm, and 50mm. suit to max cable diameter is 38mm, 48mm.
| Item number | Model | Root diameter of sheave | Max. cable diameter | Material of sheave | Applicable cable | Weight (kg) |
| 12101 | SJL-100 | Φ46 | Φ38 | Cast aluminium | Conductor | 3.5 |
| 12101A | SJL48-100 | Φ56 | Φ48 | 4.5 | ||
| 12102 | SJT-100 | Φ50 | Φ38 | Cast steel | Steel wire rope,earth wire | 5.7 |
Characteristics:
SJL Model Grounding Pulley Block To Eliminate Induced Static Electricity
1. To eliminate include electricity in conductor and grounding wire when releasing wires.
2. Mounted on the outlet side of tensioners or the inlet side of puller and drawn by two stay wires.
3. Tri-sheave mechanism compacted automatically.
4. Maximum allowable current is 100A, time electrified is 0.1 second.
5. It is recommended that section of mating conductor is 25 mm2
6. Grounding wire and grounding pile provide additionally.
