OPGW Site Optical Fiber Cable Tools Construction Mesh For Telecom Cable

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: SLE

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Packaging Details: Carton

Delivery Time: 5 - 8 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 1000 pcs / month

Get Best Price
Product Details
High Light:

electrical wire pulling tools

,

wire pulling tools

Name:
Cable Mesh Sock Grip
Suit:
OPGW, ADSS
Load:
10 Kn
Model:
SLE
Wire Dia:
7 ~ 11 Mm
Apply:
OPGW Site
Name:
Cable Mesh Sock Grip
Suit:
OPGW, ADSS
Load:
10 Kn
Model:
SLE
Wire Dia:
7 ~ 11 Mm
Apply:
OPGW Site
Product Description

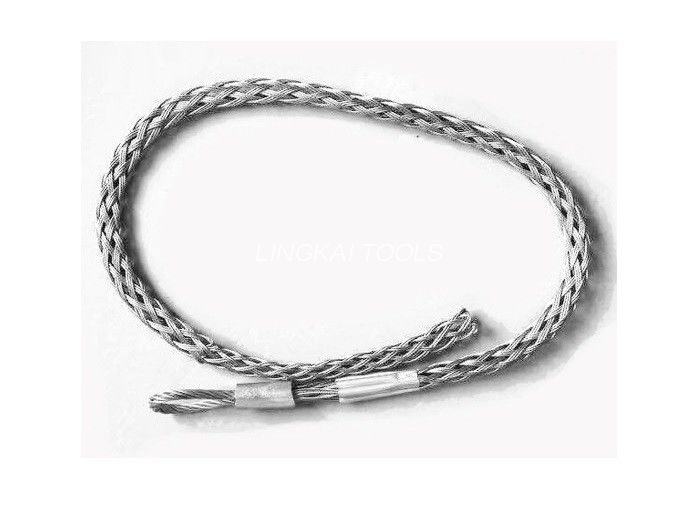

OPGW Construction Mesh Cable Sock Grips Single Thimble Cable Mesh Sock Grip



Cable Mesh Sock Grip Technical Data

OPGW Site Optical Fiber Cable Tools Construction Mesh For Telecom Cable

Item number Model Applicable groud wire diameter(mm) Load(kN)
17141 17141s SLE(S)-1 7-11 10
17142 17142s SLE(S)-1.5 11-15 15
17143 17143s SLE(S)-2 15-18 20
17144 17144s SLE(S)-2.5 18-22 25

OPGW Construction Mecsh Cable Sock Grips Application

This mesh cable gripper is used for the construction of APGW and ADSS,ADSS means all-dielectric self-suppoting optical fiber cable, OPGW refers to the optical power ground wire.

Operation Method:

OPGW Construction Mesh Cable Sock Grips Single Thimble Cable Mesh Sock Grip

1. Start the lacing from the eye end or anchoring end of the cable grip.

2.Thread the lace from through the first two loops of the split and pull.

3. Don not pull the lace too tight at this stage, leave a space between adjoin-ing loop roughly equal to the width.

4. As you continue the length, pull the open side of the grip, as wide apart as required.

5. Try to achieve an even and net lace-up as this assists with the strength of the grip when pulling.

6. Finally tie the end of the lace, once or twice round the end of the grip, twisting the end together securely,  Excess lace can be cut off.

Wire rope cable grip for following outdoor cable;

1, Telecom cable

2, Fiber cable

3,Coaxial cable

4, Feeder cable

5, Hybrid cable

6, Corrugated cable

7, Smooth cable

8, Braid cable





OPGW Site Optical Fiber Cable Tools Construction Mesh For Telecom Cable 0

OPGW Site Optical Fiber Cable Tools Construction Mesh For Telecom Cable 1





Optical Fiber Cable Stringing Equipment:

OPGW Site Optical Fiber Cable Tools Construction Mesh For Telecom Cable 2OPGW Site Optical Fiber Cable Tools Construction Mesh For Telecom Cable 3
