Product Details
Place of Origin: ZHEJIANG
Brand Name: Linkai
Certification: ISO CE
Model Number: SH80S SZ3-1
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: Get the latest
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/month
Model: |
SH80S SA3-1 |
Name: |
3 Bundle Blocks |
Type: |
Stringing Blocks |
Rated Load: |
5,10kn |
Wheel: |
Nylon |
Apply: |
Line Construction |
Model: |
SH80S SA3-1 |
Name: |
3 Bundle Blocks |
Type: |
Stringing Blocks |
Rated Load: |
5,10kn |
Wheel: |
Nylon |
Apply: |
Line Construction |

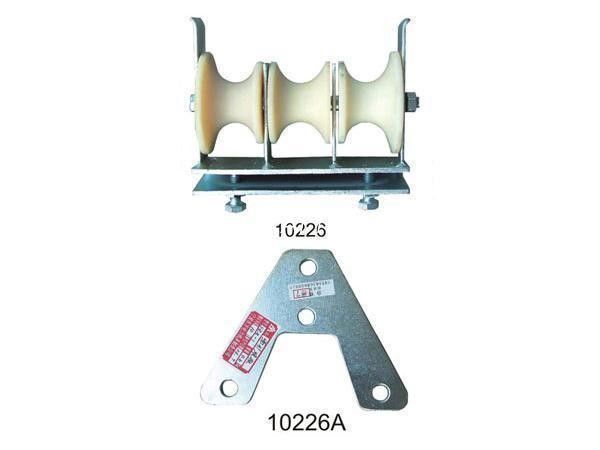

Transmission Line Blocks Triple Bundle Stringing Block And Pull Head Board
This triple bundle stringing block and pulley board can be adapted to the angle iron of less than 90 degrees. When applied in line construction, our product can pull three bundles of conducting wire with small cross section each time.
Product Table
| Item Number | Model | Rated Load (kN) | Weight (kg) | Remark |
| 10226 | SH80S | 5 | 2.8 | Nylon sheave |
| 10226A | SZ3-1 | 10 | 1.6 | δ8 (8mm thick) |
Triple bundle stringing block and pull boardare made of aluminium alloy/ MC nylon mounted on ball bearings; the groove is lined by a neoprene ring orby wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanizedsteel. The pulleys can be supplied with three types of connections: fixed(B),swivel-type(C) or with a hook supplied with safety lock(D). Grounding device orcomplete conductive sheaves can be supplied on demand.
