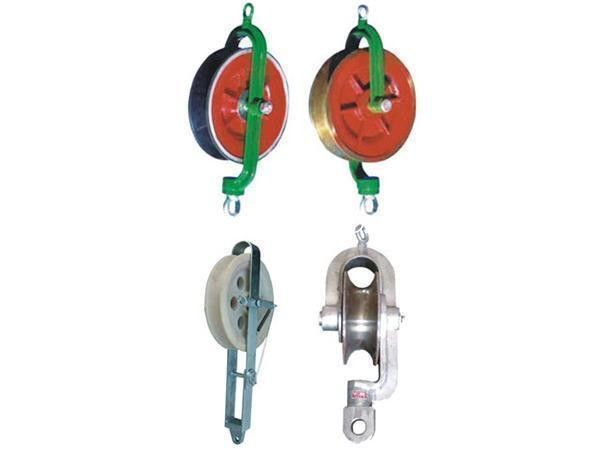

Anti Lifting Release Hold Down Conductor Stringing Blocks

Anti Lifting Release Hold Down Conductor Stringing Blocks
Anti Lifting Release Hold Down Conductor Stringing Blocks Anti Lifting Release Hold Down Conductor Stringing Blocks Anti Lifting Release Hold Down Conductor Stringing Blocks

Large Image :  Anti Lifting Release Hold Down Conductor Stringing Blocks

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: 10241,10242,10243
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: GET THE LATEST
Packaging Details: STD EXPORTED PACKING
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000SETS/MONTH
Detailed Product Description
NAME: ANTI LIFTING AUTOMATIC PULLEY TYPE: STRINGING PULLEY
SHEAVE: MC NYLON, STEEL ,ALUMINUM RATED LOAD: 10~40KN
BREAK FORCE: 30~120KN APPLICABLE: ACSR400~720
High Light:

transmission line stringing block

,

stringing pulley block

Anti Lifting Antomatic Release Pulley Hold Down Stringing Pulley Blocks



Product Table

Anti Lifting Antomatic Release Pulley Hold Down Stringing Pulley Blocks

Item
Number
Scope of
Application
Rated
Load ( kN )
Weight
(kg)
Remark Outside diameter
of sheave (mm)
10241 ≤LGJ400 10 13 Aluminum coated glue Φ308*Φ204*75
10242 ≤GJ120 10 20 Steel sheave Φ308*Φ204*75
10243 ≤LGJ720 25 16 MC nylon Φ400*Φ300*80
10244A ≤Φ28 40 55 Steel sheave Φ308*Φ208*110
10244C ≤LGJ720 34 MC nylon sheave Φ308*Φ208*110

Application: the anti lifting antomatic release pulley, it is used to press down earth wires or conductors in condutor stringing. the sheave is installed on balll bearings. The frame is made of highly quality galvanzied steel. The pulley is equipped with spring release system, can be released from the cable automatically.

Also the sheave can be made of MC nylon sheave or steel ,or aluminum sheave. If you have some technical doubts, pls freely ask us. we will recommend you the best suitable item.

BrokenTestig Site

Anti Lifting Release Hold Down Conductor Stringing Blocks 0

Anti Lifting Release Hold Down Conductor Stringing Blocks 1
