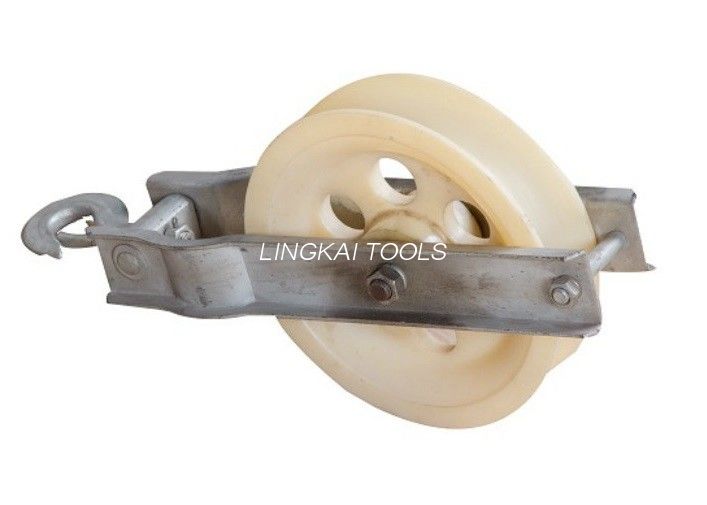

15-60 Kn Tower Erection Tools MC Nylon Sheave Single Conductor Pulleys

15-60 Kn Tower Erection Tools MC Nylon Sheave Single Conductor Pulleys
15-60 Kn Tower Erection Tools MC Nylon Sheave Single Conductor Pulleys

Large Image :  15-60 Kn Tower Erection Tools MC Nylon Sheave Single Conductor Pulleys

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHDN
Payment & Shipping Terms:
Minimum Order Quantity: 5 SETS
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000sets/month
Contact Now
Detailed Product Description
Name: Single Conductor Pulley Material: Mc Nylon
Apply For: Stringing ACSR 25 To ACSR 500 Breaking Load: 15-60kn
Used: Tower Erection License: ISO CE
High Light:

overhead line stringing block

,

stringing pulley block

MC Nylon Sheave Single Conductor Pulleys for Stringing ACSR 25 to ACSR 500





Single Conductor Pulleys for stringing ACSR 25 to ACSR 500 are made of aluminium/ MC nylon mounted on ball bearings.
Single Conductor Pulleys for stringing ACSR 25 to ACSR 500
Single Conductor Pulleys for stringing ACSR 25 to ACSR 500 are made of aluminium/ MC nylon mounted on ball bearings; the groove is lined by a neoprene ring or by wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanized steel. The pulleys can be supplied with three types of connections: fixed(B), swivel-type(C) or with a hook supplied with safety lock(D). Grounding device or complete conductive sheaves can be supplied on demand.
Ordernumber Model Suitableconductor Breaking load(kg) Weight(kg) Features
10171 SHD-120×30 ACSR2570 15 1.5 Aluminoussheave
10172 SHD-160×40 ACSR95120 30 2.5
10173 SHD-200×40 ACSR150240 45 4
10174 SHD-200×60 ACSR150240 45 4.6
10175 SHD-250×40 ACSR150240 60 4.6
10176 SHD-250×60 ACSR300400 60 6
10177 SHD-270×60 ACSR300400 60 7
10178 SHD-320×60 ACSR300400 60 9.5
10179 SHD-400×80 ACSR400500 60 15
10191 SHDN-120×30 ACSR2570 15 1.5 Nylonsheave
10192 SHDN-160×40 ACSR95120 30 2.5
10193 SHDN-200×40 ACSR150240 45 3.6
10194 SHDN-200×60 ACSR150240 45 4
10195 SHDN-250×40 ACSR150240 60 4
10196 SHDN-250×60 ACSR300400 60 4.5
10197 SHDN-270×60 ACSR300400 60 5.6
10198 SHDN-320×60 ACSR300400 60 6.7
10199 SHDN-400×80 ACSR400500 60 13

Note:
Numbers in the model name mean outside diameter of sheave ×width of sheave (mm).

15-60 Kn Tower Erection Tools MC Nylon Sheave Single Conductor Pulleys 0

15-60 Kn Tower Erection Tools MC Nylon Sheave Single Conductor Pulleys 1
