Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHZHD10
Payment & Shipping Terms
Minimum Order Quantity: 2 pcs
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8 ~ 10 work day
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Name: |
Stringing Block OPGW |
Curvature Radius: |
R570 Mm |
Dimesion: |
760 X 120 X 480 Mm |
Using: |
String OPGW |
Item: |
OPGW Stringing Block |
Weight: |
23.5 Kg |
Name: |
Stringing Block OPGW |
Curvature Radius: |
R570 Mm |
Dimesion: |
760 X 120 X 480 Mm |
Using: |
String OPGW |
Item: |
OPGW Stringing Block |
Weight: |
23.5 Kg |
20KN OPGW Cable Stringing Block to Stringing Optical Fiber Cables of 22-60mm
Introduction

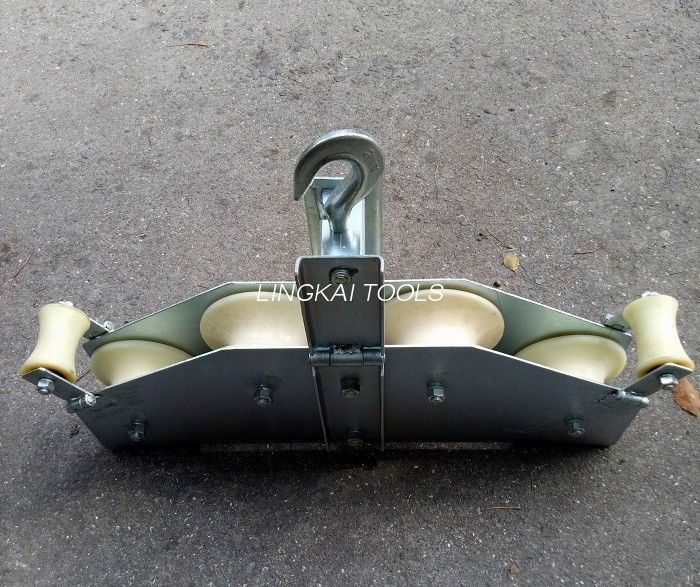

SHZHD10 R570 OPGW Tools Anti Twist Running Board To String Cables 22mm
Our quadrant cable block is utilized to string fiber optic cable with its diameter of less than 22mm. It is designed with four-wheel composite structure, featuring light weight, large radius of curvature.
20KN OPGW Cable Stringing Block to Stringing Optical Fiber Cables of 22-60mm
Specification R570 Mm Optical Fiber Cable Tools Four Wheels Structure To String Cables
| Item number | 20141 |
| Model | SHZHD10 |
| Curvature radius(mm) | R570 |
| Dimensions(mm) | 760x120x480 |
| Rated load(kN) | 10 |
| Weight(kg) | 23.5 |
Uses: quadrant cable block is used to string optical fiber cables of φ22mm and below; or φ60mm cable and below.
Features: Adopt four wheels structure, light in weight, large bend radius.
