Crandle Block Fiber Optical Cable Replacer / OPGW Replacement Cable Pulley

Crandle Block Fiber Optical Cable Replacer / OPGW Replacement Cable Pulley
Crandle Block Fiber Optical Cable Replacer / OPGW Replacement Cable Pulley Crandle Block Fiber Optical Cable Replacer / OPGW Replacement Cable Pulley Crandle Block Fiber Optical Cable Replacer / OPGW Replacement Cable Pulley

Large Image :  Crandle Block Fiber Optical Cable Replacer / OPGW Replacement Cable Pulley

Product Details:
Place of Origin: ningbo china
Brand Name: Linkai
Certification: iso ce
Model Number: sh2-opgw2
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-7 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000pcs/month
Detailed Product Description
Type: OPGW Stringing Block Use: For Exchange Wires
Rated Load: 2kn Material: Nylon
Weight: 2.2kg License: ISO CE
High Light:

electrical wire pulling tools

,

wire pulling tools

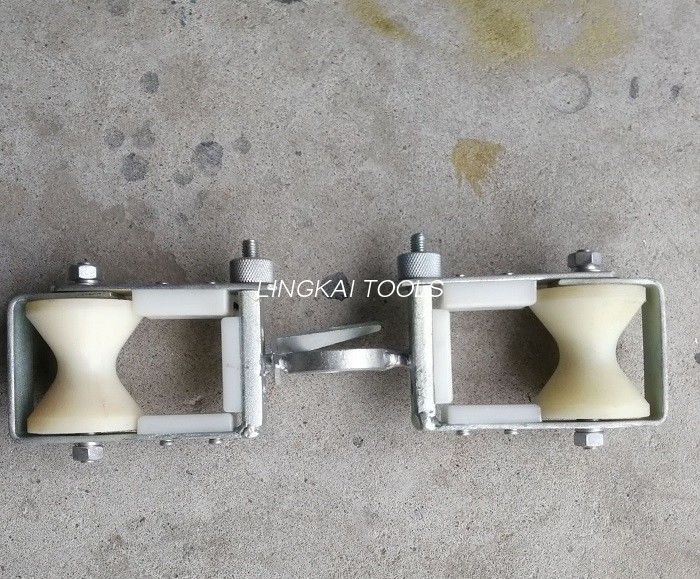

SH2 - OPGW2 Crandle Block Fiber Optical Cable Replacer Double Sheave Block



This device is specifically designed for replacement of an existing ground wire (G.W.) with OPGW (Optical Grounding Wire).
It is composed by two galvanized steel half frames linked by a ring with a swivel plate.
In each frame are fitted:
1. one grooved nylon roller with two ball bearings
2. three nylon plates to guarantee the OPGW protection
One side of each frame can be easily opened by a knurled nut.

SH2 - OPGW2 Crandle Block Fiber Optical Cable Replacer Double Sheave Block

OPGW Cable Replacement Pulley Detailed Data

Item number 20123
Model SH2-OPGW1
Rated load (kN) 2
Dimension (mm) 152×110×343
Weight(kg) 2.4

The frame have been designed in order to avoid any contact of the OPGW with the steel part.

Our cable replacement double pulley serves to replace the overhead ground wire by OPGW operation.

Crandle Block Fiber Optical Cable Replacer / OPGW Replacement Cable Pulley 0Crandle Block Fiber Optical Cable Replacer / OPGW Replacement Cable Pulley 1

Crandle Block Fiber Optical Cable Replacer / OPGW Replacement Cable Pulley 2
