Product Details
Place of Origin: ningbo china
Brand Name: Linkai
Certification: iso ce
Model Number: sjs
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: get the latest
Packaging Details: wooden case
Delivery Time: 5-8work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/day
Name: |
Double Hook Steel Turnbuckle |
Model: |
Sjs-0.5 |
Rated Load: |
5kn |
Max Center Distance: |
800mm |
Adjustable Distance: |
250mm |
Weight: |
2.5kg |
Name: |
Double Hook Steel Turnbuckle |
Model: |
Sjs-0.5 |
Rated Load: |
5kn |
Max Center Distance: |
800mm |
Adjustable Distance: |
250mm |
Weight: |
2.5kg |

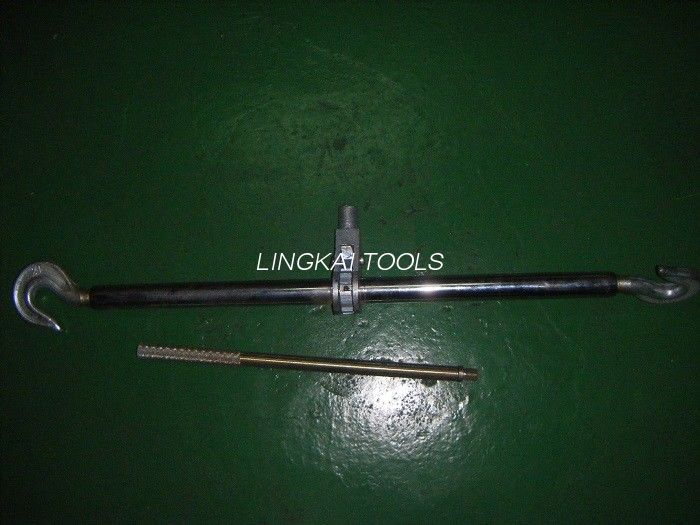

5KN Rated Load Double Hook Wire Tightening Tool Steel Wire Rope Turnbuckle
Our steel double hook turnbuckle plays a role in tightening the steel wire rope, stranded steel wire, and some others. This product from 14113 to 14116 can be also provided with the ring structure, which must be clearly indicated in the contract.
Quick Information:
1. name: dual hook steel turnbuckle
2. model:SJS-05
3. Type, conductor wire rope tightening tools, steel wire rope turnbuckle
4. material:steel
5.Brand: ningbo donghuan
6.Max center distance: 800mm
7.Adjustable distance:300mm
Detailed Data
| Item number | Model | Rated load (kN) | Maximum center distance | Adjustable distance (mm) | Weight (kg) | Remark |
| 14111 | SJS-0.5 | 5 | 800 | 300 | 2.5 | Steel |
| 14112 | SJS-1 | 10 | 860 | 250 | 3.5 | |
| 14113 | SJS-2 | 20 | 1050 | 340 | 4 | |
| 14114 | SJS-3 | 30 | 1350 | 470 | 6 | |
| 14115 | SJS-5 | 50 | 1440 | 510 | 8 | |
| 14116 | SJS-8 | 80 | 1670 | 560 | 8.5 | |
| 14117 | SJS-10 | 100 | 1740 | 600 | 10 | |
| 14121 | SJSL-1 | 10 | 768 | 290 | 2 | Aluminum Alloy |
| 14122 | SJSL-2 | 20 | 936 | 350 | 2.5 | |
| 14123 | SJSL-3 | 30 | 1296 | 530 | 4.5 | |
| 14124 | SJSL-5 | 50 | 1500 | 630 | 6 |
