Product Details:
Payment & Shipping Terms:
|
| Name: | Insulated Conductor Tightening Tools | Rated Load: | 15kn |
|---|---|---|---|
| Max Tight Line: | 1400mm | Min Tight Line: | 480mm |
| Type: | Withdrawing Wire Tools | Weight: | 4.2kg |
| High Light: | electrical wire pulling tools,conductor pulling tools |
||

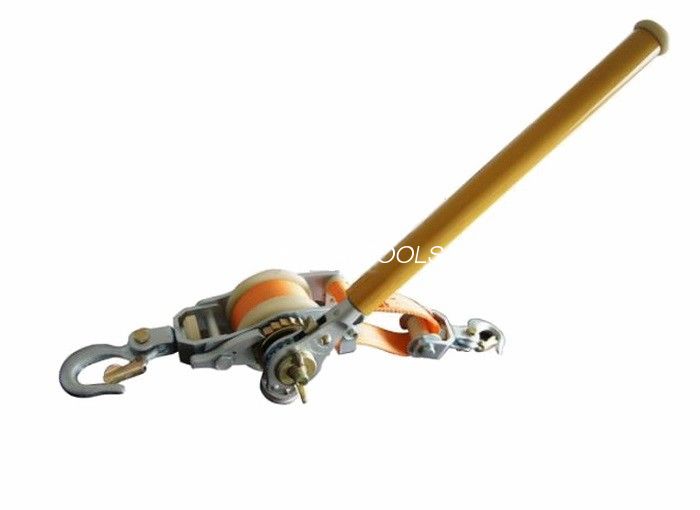

2 Ton Withdrawing Wire Tool Insulated Conductor Tightening Tools Wire Tighter
This withdrawing wire tool can be used in cooperation with the conductor gripper to tighten the conducting wire. Our product is designed with the friction structure, which is flexible and reliable to turn.
Quick Information:
1. name: ratchet withdraing wire tighter
2. model: sjja-1.5
3. Rated load: 15kn
4. Max tight line:1400mm
5. weight:4.2kg
6.Donghuan brand.
Ratchet Withdrawing Wire Tighter
|
Item number |
Model |
Rated Load |
MaxTight-line Length(mm) |
Weight(kg) |
MinTight-line Length(mm) |
| 14102B | SJJA-1 | 10 | 1210 | 3.5 | 410mm |
| 14103B | SJJA-1.5 | 15 | 1400 | 4.2 | 480mm |
| 14104B | SJJA-2 | 20 | 1400 | 4.5 | 480mm |
Configuration:
Uses:Apply to tightening conductor and using wih conductor wire grip.
Explain:It is adopted friction mechanism with reliable performance.
