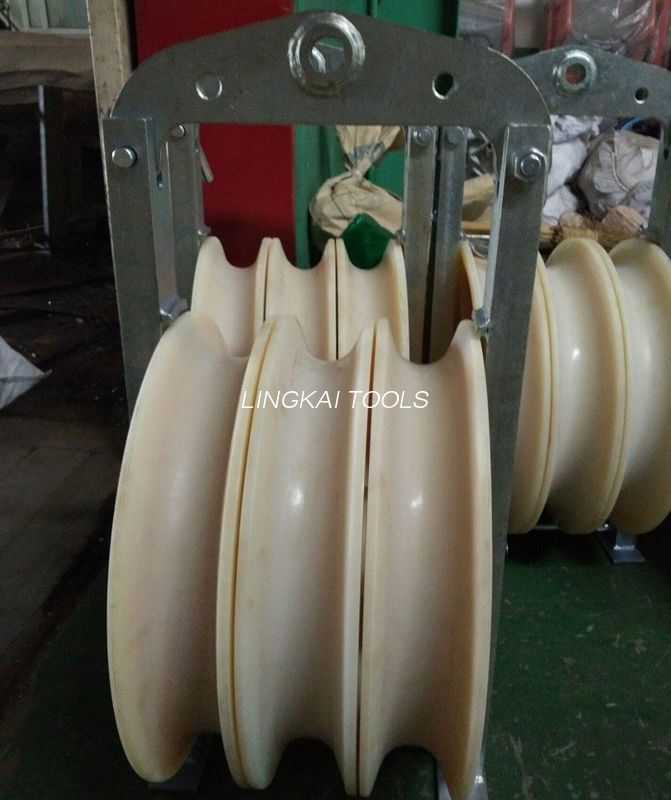

Dia 660mm Conductor Stringing Blocks / Stringing Equipment For Overhead Power Lines

Dia 660mm Conductor Stringing Blocks / Stringing Equipment For Overhead Power Lines
Dia 660mm Conductor Stringing Blocks / Stringing Equipment For Overhead Power Lines Dia 660mm Conductor Stringing Blocks / Stringing Equipment For Overhead Power Lines

Large Image :  Dia 660mm Conductor Stringing Blocks / Stringing Equipment For Overhead Power Lines

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHD660
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: get the latest
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500pcs/day
Detailed Product Description
Series: 660mm Diameter Model: SHD660
Sheave: 5 Rated Load: 60kn
Weight: 150kg Material: MC Nylon Material
High Light:

overhead line stringing block

,

transmission line stringing block

Diameter 660mm Stringing Block Power Transmission Lines Stringing Pulleys





Large diameter trochlear Products:

Item number

Model

Number of sheaves

Rated load (kN)

Weight (kg)

Features

10121 SHD660 1 20 30

Rubber lined aluminium sheave

10122 SHS660 3 40 100

Middle : Cast steel sheave

Conductor : Rubber lined aluminium sheave

10123 SHW660 5 60 150
10124 SHDN660 1 20 26

MC nylon sheave

10125 SHSLN660 3 40 86

Middle : MC nylon sheave

Conductor : Rubber lined aluminium sheave

10126 SHWLN660 5 60 120
10127 SHSQN660 3 40 70

MC nylon sheave

10128 SHWQN660 5 60 110
10130 SHQ660A 7 75 190

Middle :cast steel sheave

Conductor : MC nylon sheave



Quick Information:

1. Donghuan Brand

2. Overhead line transmission stringing pulley

3. Mode SHW660, number of sheave is 5, the rated load is 6T, and 150kg

4. ISO approved,

5. Imported Russian raw material mixing the nylon pulley

6. we made the pulley all by ourselves.



Transmission lines stringing pulleys Configuration:

1.Maximum suitable conductor ACSR500

2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm)

3.Sheave dimension Φ660×Φ560×110(mm) can be customized.

Dia 660mm Conductor Stringing Blocks / Stringing Equipment For Overhead Power Lines 0Dia 660mm Conductor Stringing Blocks / Stringing Equipment For Overhead Power Lines 1
