Anti Lifting Automatic Release Cable Pulling Pulley Rated load 40kN 55kg

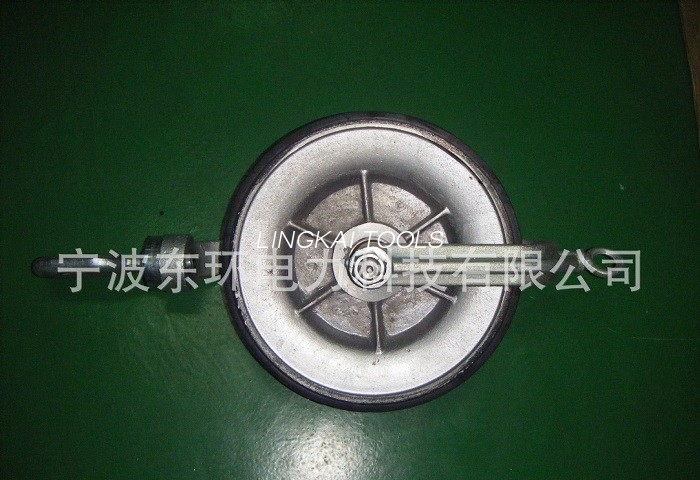

Large Image : Anti Lifting Automatic Release Cable Pulling Pulley Rated load 40kN 55kg

Product Details:

Place of Origin:	NINGBO CHINA
Brand Name:	Linkai
Certification:	ISO CE
Model Number:	10241, 10242,10243...

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	get the latest
Packaging Details:	wooden case
Delivery Time:	5-8work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Material:	Steel Sheave	Model:	10244A
Applicable Range:	<=28mm	Rated Load:	40kn
Weight:	55kg	Block Dimension:	308208110mm
High Light:	transmission line stringing block , stringing pulley block

Stringing Pulley Blocks Anti Lifting Automatic Release Pulley for Pulling Rope

Anti LiftingAutomatic Release Pulley is a special device that prevents the pulling rope lifting with respect to thetheoretical line, specifically in case of towers with considerable heightdifferences. It is equipped with an automatic release system to facilitaterecovery operations.

Ordernumber	Applicablerange	Ratedload (kN)	Weight(kg)	Features
10241	≤ACSR400	10	13	Aluminumcoated glue
10242	≤GJ120	10	20	Steelsheave
10243	≤ACSR 720	25	16	MC nylon
10244A	≤Φ28	40	55	Steelsheave
10244B	≤ACSR 720		39	Aluminumsheave
10244C	≤ACSR 720		34	MC nylonsheave

Hold down pully block quick information:

1. Donghuan brand

2. Transmission line stringing pulley block

3. applicable for <=28mm ACSR

4. Steel sheave, and rated load is 4T, and break roted is 12T

Anti Lifting Automatic Release Cable Pulling Pulley Rated load 40kN 55kg 0
