Transmission Line 508mm Diameter Single Conductor Stringing Blocks

Transmission Line 508mm Diameter Single Conductor Stringing Blocks
Transmission Line 508mm Diameter Single Conductor Stringing Blocks Transmission Line 508mm Diameter Single Conductor Stringing Blocks

Large Image :  Transmission Line 508mm Diameter Single Conductor Stringing Blocks

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: 508MM
Payment & Shipping Terms:
Minimum Order Quantity: 10SETS
Price: GET THE LATEST
Packaging Details: STD EXPORTED PACKING
Delivery Time: 3-5 WORK DYAS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000SETS/MONTH
Detailed Product Description
Model: SHDN508 Sheave: 1
Rated Load: 20KN Name: Stringing Blocks
Material: MC Nylon Sheave No: 10104
High Light:

overhead line stringing block

,

transmission line stringing block



508mm Diameter Stringing Block for Single Conductor on Overhead Transmission Line Construction



Uses: Apply to paying off single conductor, twin bundled conductor or four bundled conductor on

overhead transmission line construction.

Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with

rubber liner or strengther nylon wheel with PU liner.

Technical Data

Item number Model Number of sheaves Rated load (kN) Weight (kg)



Features

10101 SHD508 1 20 18 Rubber lined aluminium sheave
10102 SHS508 3 40 61

Middle : Cast steel sheave

Conductor : Rubber lined aluminium sheave

10103 SHW508 5 60 93
10104/10104A SHDN508 1 20 16 MC nylon sheave
10105 SHSLN508 3 40 47



Middle : MC nylon sheave

Conductor : Rubber lined aluminium sheave

10106 SHWLN508 5 60 79
10107/10107A SHSQN508 3 40 38 MC nylon sheave
10108/10108A SHWQN508 5 60 70

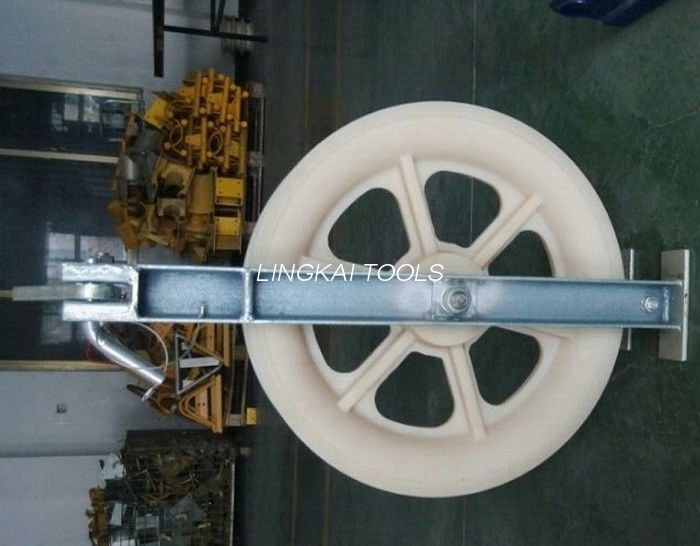

Transmission Line 508mm Diameter Single Conductor Stringing Blocks 0

Transmission Line 508mm Diameter Single Conductor Stringing Blocks 1
