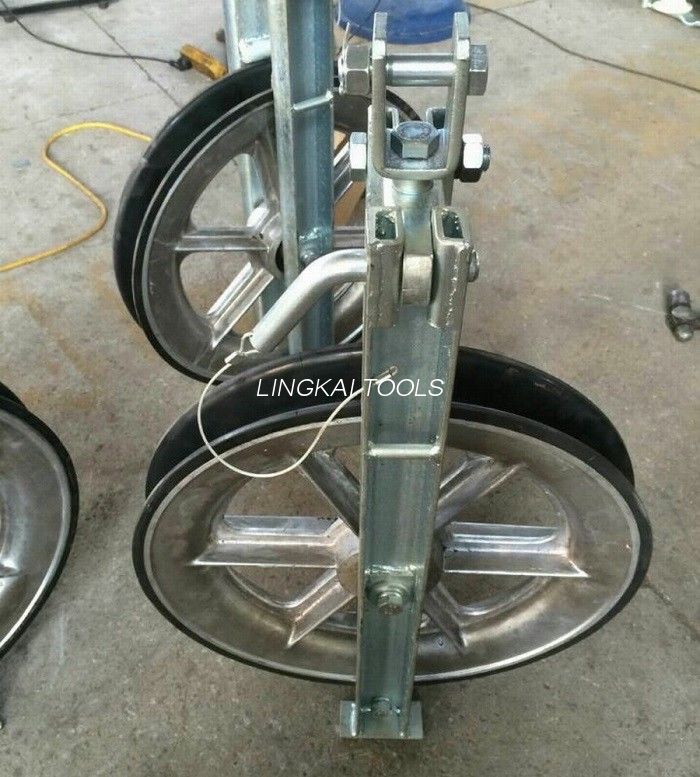

20KN Rated Load Transmission Line Stringing Tools Rubber Lined Aluminium Sheave

20KN Rated Load Transmission Line Stringing Tools Rubber Lined Aluminium Sheave

20KN Rated Load Transmission Line Stringing Tools Rubber Lined Aluminium Sheave

Product Details:

Place of Origin: NINGBO CHINA
Brand Name: LINGSHENG
Certification: ISO CE
Model Number: 508MM

Payment & Shipping Terms:

Minimum Order Quantity: 10SETS
Price: GET THE LATEST
Packaging Details: STD EXPORTED PACKING
Delivery Time: 3-5 WORK DYAS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000SETS/MONTH
Contact Now
Detailed Product Description
Model: SHD508 Sheave: 1
Rated Load: 20KN Name: Transmission Line Pulley
Material: Rubber Lined Alu Sheave No: 10101

508mm Diameter Stringing Block for Single Conductor on Overhead Transmission Line Construction



Item number Model Number of sheaves Rated load (kN) Weight (kg)



Features

10101 SHD508 1 20 18 Rubber lined aluminium sheave
10102 SHS508 3 40 61

Middle : Cast steel sheave

Conductor : Rubber lined aluminium sheave

10103 SHW508 5 60 93
10104/10104A SHDN508 1 20 16 MC nylon sheave
10105 SHSLN508 3 40 47



Middle : MC nylon sheave

Conductor : Rubber lined aluminium sheave

10106 SHWLN508 5 60 79
10107/10107A SHSQN508 3 40 38 MC nylon sheave
10108/10108A SHWQN508 5 60 70




508 mm stringing blocks

508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction. We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing. 1.Maximum suitable conductor ACSR400.Configuration: 2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75 (mm) 3.Sheave dimension Φ508×Φ408×100 (mm) can be customized

20KN Rated Load Transmission Line Stringing Tools Rubber Lined Aluminium Sheave
