Product Details
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: 660*110
Payment & Shipping Terms
Minimum Order Quantity: 10 sets
Price: get the latest
Packaging Details: std exported packing
Delivery Time: 5-8 worl days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/week
Wheel: |
Five Sheaves |
Materail: |
MC Nylon |
Apply: |
Pay Off 4 Conductors |
Type: |
Stringing Line Block |
Testing: |
Pre-shipng Available |
Rated Load: |
6T |
Wheel: |
Five Sheaves |
Materail: |
MC Nylon |
Apply: |
Pay Off 4 Conductors |
Type: |
Stringing Line Block |
Testing: |
Pre-shipng Available |
Rated Load: |
6T |

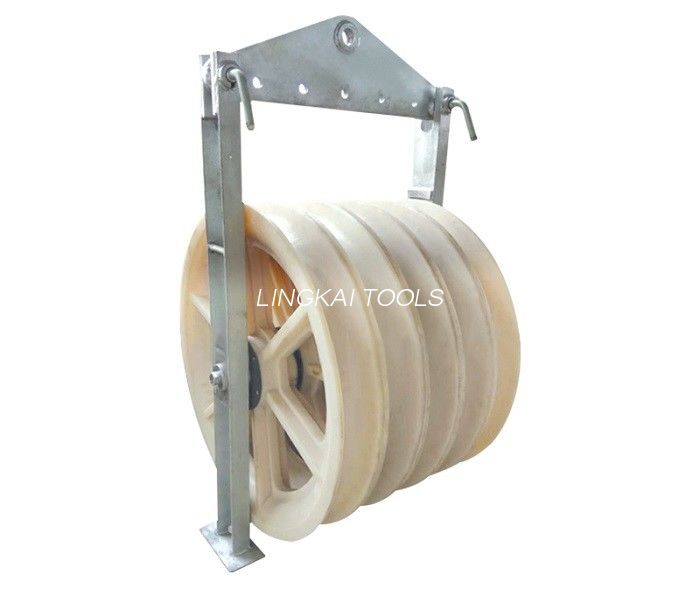

Transmission Line Tools Five Wheel Conductor Stringing Block Pulleys For 4 Conductor
Customized Bundled Stringing Block Five Nylon Conductor Pulley Stringing Equipment Accessories
Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead transmission line construction.
Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or strengther nylon wheel with PU liner.
660mm Stringing Block
Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort.
1.Maximum suitable conductor ACSR500
2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm)
3.Sheave dimension Φ660×Φ560×110(mm) can be customized.
Technical Data
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
| 10122 | SHS660 | 3 | 40 | 100 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124/10124A | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 86 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127/10127A | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
| 10128/10128A | SHWQN660 | 5 | 60 | 110 | |
| 10130 | SHQ660A | 7 | 75 | 190 |
Middle :cast steel sheave Conductor : MC nylon sheave |
