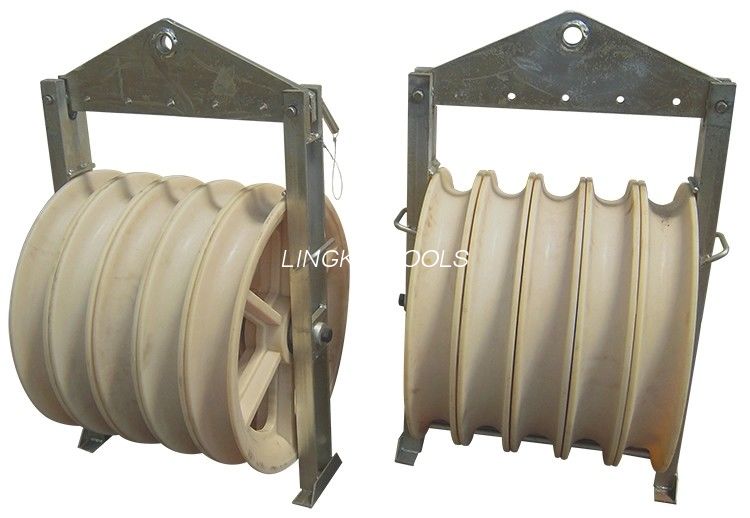

Five Wheel Nylon Four Bundled Conductor Stringing Blocks

Five Wheel Nylon Four Bundled Conductor Stringing Blocks
Five Wheel Nylon Four Bundled Conductor Stringing Blocks Five Wheel Nylon Four Bundled Conductor Stringing Blocks

Large Image :  Five Wheel Nylon Four Bundled Conductor Stringing Blocks

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: 660*110mm
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: get the latest
Packaging Details: std exported packing
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/weel
Detailed Product Description
Dia: 660*110mm Type: 5 Wheels Conductor Pulley
Use: Four Conductor Stringing Model: SHLLWN 660
One Wheel Force: 2T 5 Wheels: 10T
High Light:

transmission line stringing block

,

stringing pulley block

String Four Bundled Conductor Lines Five Wheel Nylon Conductor Pulleys

Products:

Item number

Model

Number of sheaves

Rated load (kN)

Weight (kg)

Features

10121 SHD660  1 20 30

Rubber lined aluminium sheave

10122 SHS660  3 40 100

Middle : Cast steel sheave

Conductor : Rubber lined aluminium sheave

10123 SHW660  5 60 150
10124 SHDN660  1 20 26

MC nylon sheave

10125 SHSLN660 3 40 86

Middle : MC nylon sheave

Conductor : Rubber lined aluminium sheave

10126 SHWLN660  5 60 120
10127 SHSQN660  3 40 70

MC nylon sheave

10128 SHWQN660 5 60 110
10130 SHQ660A 7 75 190

Middle :cast steel sheave

Conductor : MC nylon sheave



Configuration:

1.Maximum suitable conductor ACSR500

2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm)

3.Sheave dimension Φ660×Φ560×110(mm) can be customized.
