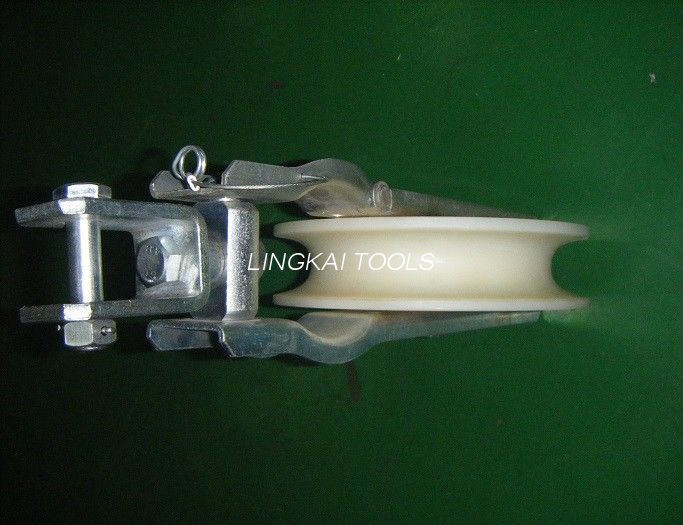

Nylon Transmission Stringing Blocks Pulleys 10KN Rated Load

Nylon Transmission Stringing Blocks Pulleys 10KN Rated Load
Nylon Transmission Stringing Blocks Pulleys 10KN Rated Load

Large Image :  Nylon Transmission Stringing Blocks Pulleys 10KN Rated Load

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: SHDN
Payment & Shipping Terms:
Minimum Order Quantity: 10sets
Price: get the latest
Packaging Details: Standrad Exported Packing
Delivery Time: 8-15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100000sets/month
Detailed Product Description
Name: Pulley Blocks Material: MC Nylon
Type: Stringing Blocks Rated Load: 10KN
Weight: 2.5 Kg Brand: Lingsheng
High Light:

overhead line stringing block

,

transmission line stringing block

Nylon Stringing Blocks Pulleys Transmission Line Accessories Single Nylon Conductor Pulley





Stringing Equipment Accessories Nylon Single Conductor Pulleys

Wheel material aluminum or nylon, and it could be covered by rubber.



Product: stringing pulley blocks; stringing blocks.

Usage:Protect the cable and conductor from fricting when they are laying.They can save time and effort.

Description:

a. We manufacture a lot of models for different uses in the overhead transmission line construction.

b. They have are used to support conductors,OPGW,ADSS, communicatio lines.

c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.

Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.

If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements



Cable Pulley
Stringing blocks have different diameter were used to string different conductors.

Our Large diameter stringing blocks are High strength and flexibility,easy to use,light weight,and long service.



Performance

Model

Wheel size Diameter x Width

(mm)

Conductor size

(mm2)

Rated load

(kN)

Weight

(kg)

Wheel material
SHDN-120X30 120x30 25~70 5 1.5 Nylon
SHDN-160X40 160X40 95~120 10 2.3
SHDN-200X40 200X40 150~240 15 2.5
SHDN-200X60 200X60 150~240 15 3.0
SHDN-250X40 250X40 150~240 20 3.6
SHDN-250X60 250X60 300~400 20 3.8
SHDN-270X60 270X60 300~400 20 4.3
SHDN-320X60 320X60 300~400 20 7.5
SHDN-400X80 400X80 400~500 20 8
SHDN-508X75 508X75 ≤400 20 18 Nylon
SHDN-660X100 660X100 ≤500 20 20
SHDN-822X110 830X110 ≤630 30 25
SHDN-916X110 916X110 ≤800 50 45
SHDN-1040X125 1040X125 ≤1000 55 105
SHDN-1160X150 1160X150 ≤1250 60 165
SHDN-255X110 255X110 ≤630 100 77
SHDN-325X150 325X150 ≤1520 120 85

Nylon Transmission Stringing Blocks Pulleys 10KN Rated Load 0
