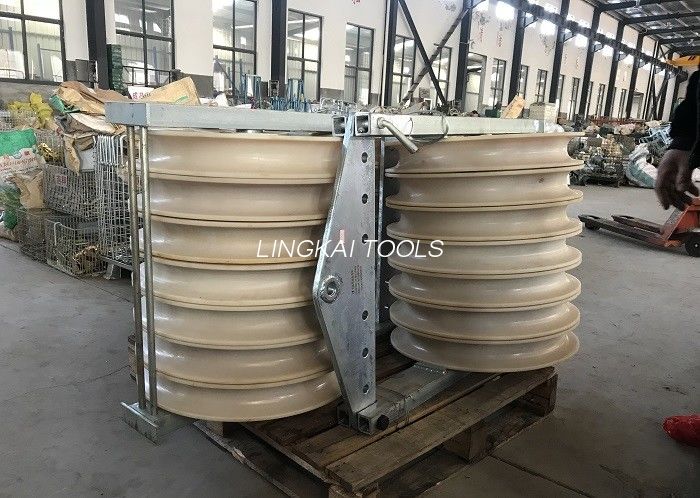

Large Diameter Transmission Stringing Blocks Cable Pulling Conductor Stringing Blocks

Large Diameter Transmission Stringing Blocks Cable Pulling Conductor Stringing Blocks
Large Diameter Transmission Stringing Blocks Cable Pulling Conductor Stringing Blocks

Large Image :  Large Diameter Transmission Stringing Blocks Cable Pulling Conductor Stringing Blocks

Product Details:
Place of Origin: Ningbo
Brand Name: Linkai
Certification: ISO
Model Number: SHDN 916
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/day
Detailed Product Description
Production Name: 916mm Stringing Block Function: String Wire
Type: Pulley Block Material: Nylon And Alloy, Nylon And Alloy
Feature: Arge Diameter Wheels Made: Zhejiang ,ningbo
High Light:

overhead line stringing block

,

transmission line stringing block

916mm Large Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block

916mm Large Diameter Wheels Stringing Block





Our 916mm Large Diameter Stringing Block has the maximum suitable conductor LGJ720. In detail, the aluminum of this conducting wire can possess the largest cross section of up to 720 square millimeters. The dimension of block (outside diameter*root diameter*sheave width) is Φ916× Φ 800× 110 (mm).



1. Maximum suitable conductor ACSR720.

2. Sheave dimension ( outside diameter× root diameter × sheave width) Φ916×Φ800×110(mm).

3. The middle sheave can be customized as cast steel sheave



916mm Main Specifications

Item Number Model Number of Sheave Rated Load (KN) Weight (kg) Sheave Feature
10151 SHDN916 1 50 51 MC nylon sheave
10152 SHSQN916 3 75 120
10153 SHWQN916 5 150 200
10151 SHDN916-125 1 50 60

Large Diameter Transmission Stringing Blocks Cable Pulling Conductor Stringing Blocks 0
