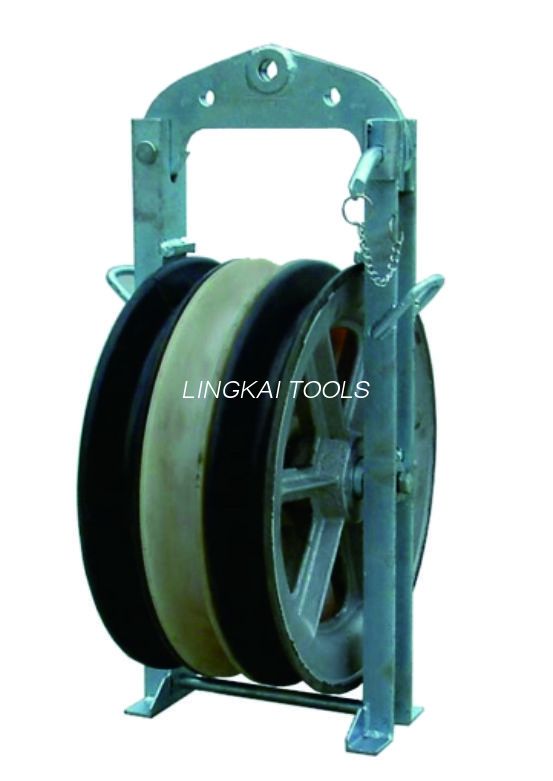

660mm Bundled Wire Conductor Pulley Stringing Block

660mm Bundled Wire Conductor Pulley Stringing Block
660mm Bundled Wire Conductor Pulley Stringing Block

Large Image :  660mm Bundled Wire Conductor Pulley Stringing Block

Product Details:
Place of Origin: Ningbo china
Brand Name: Linkai
Certification: ISO CE
Model Number: 660 mm
Payment & Shipping Terms:
Minimum Order Quantity: 10sets
Price: get the latest
Packaging Details: std exported packing
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000sets/month
Detailed Product Description
Model: 660 MM Stringing Block Sheave: 1,3,5
Rated Load: 60KN Weight: 150kg
Material: MC Nylon Sheave Item: Stringing Block
High Light:

Pulley Stringing Block

,

Bundled Wire Stringing Block

,

660mm Conductor Stringing Blocks

660mm Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block



660 mm stringing blocks

Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort. 1.Maximum suitable conductor ACSR500 2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm) 3.Sheave dimension Φ660×Φ560×110(mm) can be customized



Technical Data

Item number Model Number of sheaves Rated load (kN) Weight (kg) Features
10121 SHD660 1 20 30 Rubber lined aluminium sheave
10122 SHS660 3 40 100

Middle : Cast steel sheave

Conductor : Rubber lined aluminium sheave

10123 SHW660 5 60 150
10124/10124A SHDN660 1 20 26 MC nylon sheave
10125 SHSLN660 3 40 86

Middle : MC nylon sheave

Conductor : Rubber lined aluminium sheave

10126 SHWLN660 5 60 120
10127/10127A SHSQN660 3 40 70 MC nylon sheave
10128/10128A SHWQN660 5 60 110
10130 SHQ660A 7 75 190

Middle :cast steel sheave

Conductor : MC nylon sheave



Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead transmission line construction.

Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or strengther nylon wheel with PU liner.

660mm Bundled Wire Conductor Pulley Stringing Block 0

660mm Bundled Wire Conductor Pulley Stringing Block 1
