Product Details
Place of Origin: NINGBO
Brand Name: LINGKAI
Certification: ISO
Model Number: SHG
Payment & Shipping Terms
Minimum Order Quantity: 20 SETS
Price: GET THE LATEST
Packaging Details: EXPORTED PACKING
Delivery Time: 3-8 WORK DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000PCS/MONTH
Model: |
SHG |
Sheave: |
Aluminum Alloy And Nylon |
Function: |
Skyward And Hook |
Rated Load: |
MAX 2T |
Weight: |
Max 3.4 Kgs |
Type: |
Stringing Block |
Model: |
SHG |
Sheave: |
Aluminum Alloy And Nylon |
Function: |
Skyward And Hook |
Rated Load: |
MAX 2T |
Weight: |
Max 3.4 Kgs |
Type: |
Stringing Block |

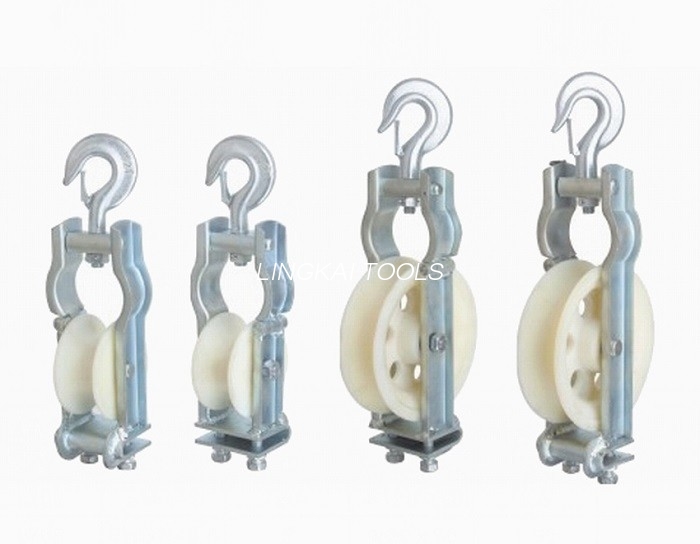

Skyward and Hooked Conductor Wire Rope Pulley Stringing Sitting and Hanging Type Dual-Use Stringing Block
Skyward and Hooked Conductor Wire Rope Pulley Stringing Sitting and Hanging Type Dual-Use Stringing Block

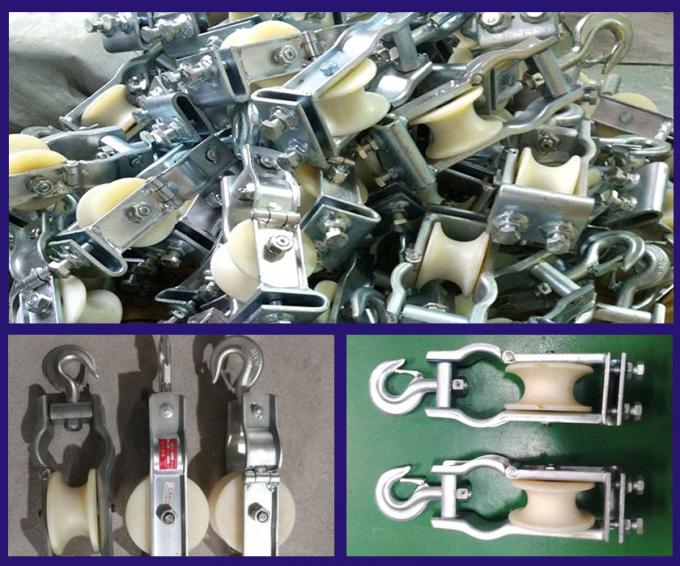

They have are used to support conductors,OPGW,ADSS, communicatio lines. The sheave of the pulley blocks are made from higth strength nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel. All kinds of pulley blocks can be manufactured according to the customers's requirements. Product can be used in hanging type stringing block or skyward stringing block.
| Item number | Model | Rated load (kN) | Outside diameter×width (mm) | Weight (kg) | Remark |
| 10261 | SHG-0.5 | 5 | φ80x50 | 2.1 | Aluminium sheave |
| 10263 | SHG-1 | 10 | φ160x40 | 3.2 | |
| 10264 | SHG-2 | 20 | φ120x58 | 3.6 | |
| 10271 | SHGN-0.5 | 5 | φ80x50 | 1.9 | Nylon sheave |
| 10272 | SHGN/0.5 | 5 | φ120x30 | 1.8 | |
| 10273 | SHGN-1 | 10 | φ160x40 | 2.6 | |
| 10274 | SHGN-2 | 20 | φ120x58 | 3.4 |
