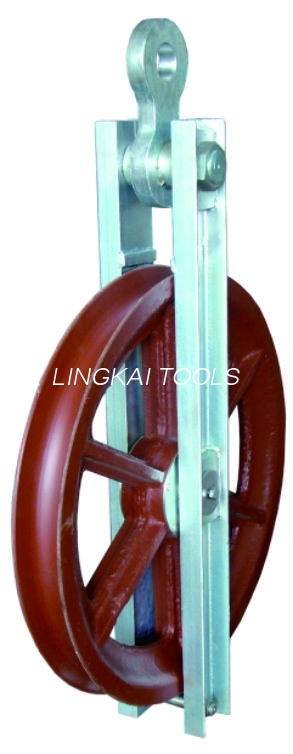

Wire Rope Cable 160KN Conductor Stringing Blocks

Wire Rope Cable 160KN Conductor Stringing Blocks
Wire Rope Cable 160KN Conductor Stringing Blocks

Large Image :  Wire Rope Cable 160KN Conductor Stringing Blocks

Product Details:
Place of Origin: NINGBO
Brand Name: LINGKAI
Certification: ISO
Model Number: THZ1-5
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: get the latest
Packaging Details: wooden case
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000sets/month
Detailed Product Description
Rated Load: 160KN Sheave Dimater: 600mm
Sheave Width: 92mm Weight: 115kgs
Material: Steel Sheave Name: High Speed Turning Block
High Light:

160KN Conductor Stringing Blocks

,

160KN Stringing Blocks

,

92mm width conductor stringing blocks

WIRE ROPE CABLE STRING PULLEY BLOCK FOR CONDUCTOR HIGH SPEED TURNING BLOCK

Apply to steel wire rope traction and turning. It can pass through steel wire rope connector;

The maximum allowable speed of hauling rope is 80m/min.



TECHNICAL DATA

Item number Model

Rated Load

(KN)

Sheave Diameter(mm)

Sheave

width

(mm)

Weight

(kg)

Remark
12141 THZ1-5 50 Φ308 75 22 Steel Sheave
12141A THZ1-8 80 Φ308 110 30
12142 THZ1-16 160 Φ600 110 115
12143 THZ1-30 300 Φ916 110/125 200
12141B THZ2-10 100 Φ308 110 52
12142A THZ2-16 160 Φ660 110 68
