660X110mm Pilot Bundled Conductor Stringing Blocks For Transmission Line

660X110mm Pilot Bundled Conductor Stringing Blocks For Transmission Line
660X110mm Pilot Bundled Conductor Stringing Blocks For Transmission Line 660X110mm Pilot Bundled Conductor Stringing Blocks For Transmission Line 660X110mm Pilot Bundled Conductor Stringing Blocks For Transmission Line

Large Image :  660X110mm Pilot Bundled Conductor Stringing Blocks For Transmission Line

Product Details:
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO CE
Model Number: 660mm
Payment & Shipping Terms:
Minimum Order Quantity: 20 sets
Price: get the latest
Packaging Details: exported packing
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month
Detailed Product Description
Trade Term: FOB,CFR,CIF,DDP,CIP,EXW Custom: Helicopter Conductor Stringing Blocks
Means Of Transport: Ocean, Air, Land Conductor Diameter: Up To 30mm
High Light:

Pilot Bundled Conductor Stringing Blocks

,

660X110mm Conductor Stringing Blocks

,

Pilot Bundled Transmission Line Stringing Tools

660 X110 Single Nylon Sheave Pilot Bundled Conductor Stringing Block Power Transmission Line





660MM Overhead Transmission Line Conductor Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10121 SHD660 400-500 20 30 Aluminum alloy
10124 SHDN660 400-500 20 24 MC Nylon
10122 SHS660 400-500 40 106 Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene
10125 SHSLN660 400-500 40 92
10127 SHSQN660 400-500 40 76 MC Nylon
10123 SHW660 400-500 60 150 Aluminum Alloy lined with neoprene
10126 SHWLN660 400-500 60 120
10128 SHWQN660 400-500 60 110 MC Nylon
10129 SHQZ660 400-500 80 260 Central steel, conductor sheave nylon or aluminum alloy
10130 SHQ660A 400-500 80 190

Application: It is suitable to string single, two or three, four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The size 508X75 mm aluminum alloy sheave can be lined with neoprene.

Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

660X110mm Pilot Bundled Conductor Stringing Blocks For Transmission Line 0

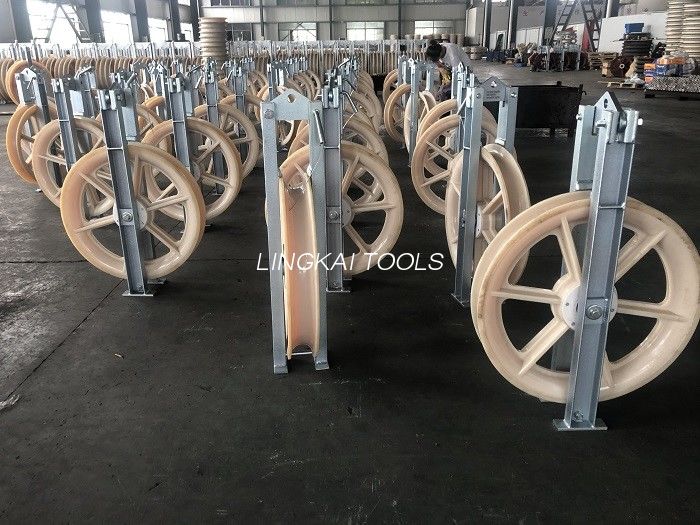

Single sheave Nylon Stringing Block

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10191 SHDN-120x30 25-70 5 1.5 Nylon
10192 SHDN-160x40 70-95 10 2.4
10193 SHDN-200x40 95-120 15 2.6
10194 SHDN-200x60 120-150 15 3.1
10195 SHDN-250x40 120-150 20 3.7
10196 SHDN-250x60 150-180 20 3.9
10197 SHDN-270x60 180-240 20 4.4
10198 SHDN-320x60 240-300 20 7.5
10199 SHDN-400x80 300-400 20 8
10104 SHDN508 300-400 20 16 Nylon, optional can be lined with neoprene
10124 SHDN660 400-500 20 24
10131 SHDN750 500-600 30 32
10141 SHDN822 600-700 30 38
10151 SHDN916 700-800 50 51
10165 SHDN1040 800-900 50 60

Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.

660X110mm Pilot Bundled Conductor Stringing Blocks For Transmission Line 1
