Product Details:
Payment & Shipping Terms:
|
| Production Capacity: | 1000 PCs Per Month | Stringing Block: | Overhead Conductor Stringing Blocks |
|---|---|---|---|
| Inner Diameter Of Sheave: | 640mm | Conductor Diameter: | Up To 34mm |
| Outer Diameter Of Sheave: | 750mm | Material Of Sheave: | MC NYLON |
| High Light: | Three Nylon Wheel Conductor Stringing Blocks,Transmission Line Bundled Conductor Stringing Blocks,Bundled Transmission Line Tools |
||

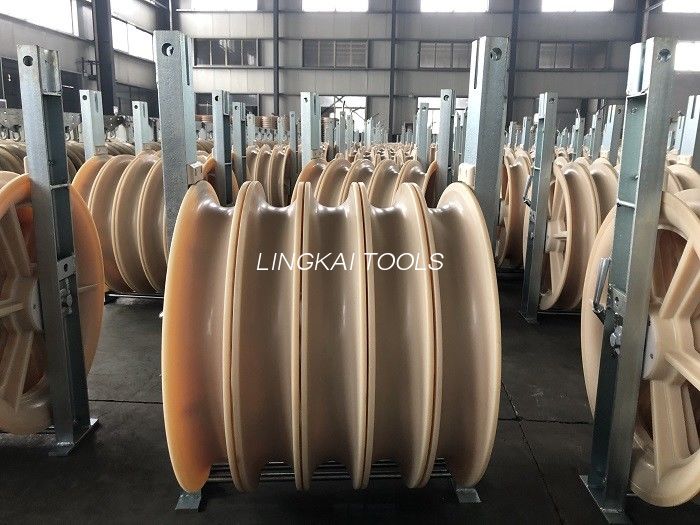

Bundled Three Wheel Nylon Conductor Stringing Block Pulley Transmission Line Tools And Equipment
Product Description
750MM Overhead Conductor Stringing Blocks (Running out Blocks) are used for overhead transmisson line bundled conductors or OPGW stringing. The sheave is made in MC Nylon.
750MM Nylon Sheaves Conductor Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10131 | SHDN750 | 500-600 | 30 | 39 | Nylon, optional can be lined with neoprene |
| 10132 | SHSQN750 | 500-600 | 60 | 98 | |
| 10133 | SHWQN750 | 500-600 | 100 | 156 |
Application: It is suitable to string single, two or four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. All the sheaves are mounted on ball bearings, the central sheave is specially strengthened for passing of steel wire rope. The frame is made in galvanized steel.
Note:
1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).
2. The sheave size outer diameter X inner diameter X width: 750mm X 640mm X 110mm
