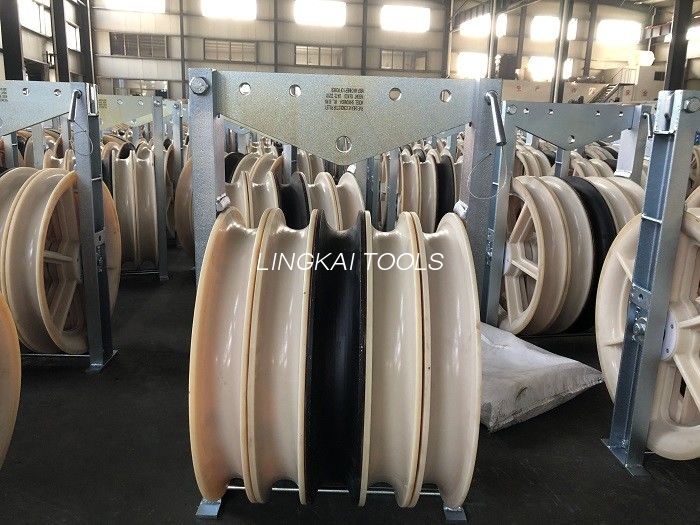

40KN MC Nylon Stringing Pulleys Bundled Conductor Pulley For Transmission Line

Product Details

Place of Origin: NINGBO

Brand Name: Lingkai

Certification: ISO CE

Model Number: 660mm

Payment & Shipping Terms

Minimum Order Quantity: 20 sets

Price: get the latest

Packaging Details: exported packing

Delivery Time: 5-15 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000sets/month

Get Best Price
Product Details
Highlight:

Bundled Conductor Pulley

,

Cable Entrance Protective Conductor Pulley

,

40KN Transmission Line Stringing Equipment

Custom:
Helicopter Conductor Stringing Blocks
Means Of Transport:
Ocean, Air, Land
Model:
SHDN660 SHSQN750 SHSQN822 SHWQN916
Material Of Sheave:
High Strength Nylon, Lined With Neoprene
Inner Diameter:
408,560, 640, 710, 800 Mm
Outer Diameter:
508,660,750, 822, 916 Mm
Custom:
Helicopter Conductor Stringing Blocks
Means Of Transport:
Ocean, Air, Land
Model:
SHDN660 SHSQN750 SHSQN822 SHWQN916
Material Of Sheave:
High Strength Nylon, Lined With Neoprene
Inner Diameter:
408,560, 640, 710, 800 Mm
Outer Diameter:
508,660,750, 822, 916 Mm
Product Description

Cable Pulley Customized  Bundle Conductor Pulley For Transmission Line







Product Description

Overhead Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing. We have produced sheave rollers with nylon or aluminum alloy, both kinds of rollers could be lined with neoprene, to protect some special kind of conductors.





Note:

1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.

The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.



Three sheaves Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10107 SHSQN508 300-400 40 43 Nylon, optional can be lined with neoprene
10127 SHSQN660 400-500 40 76
10132 SHSQN750 500-600 60 98
10142 SHSQN822 600-700 60 110
10152 SHSQN916 700-800 75 126
10166 SHSQN1040 800-900 105 200

Application: It is suitable to string two or three stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.



Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
